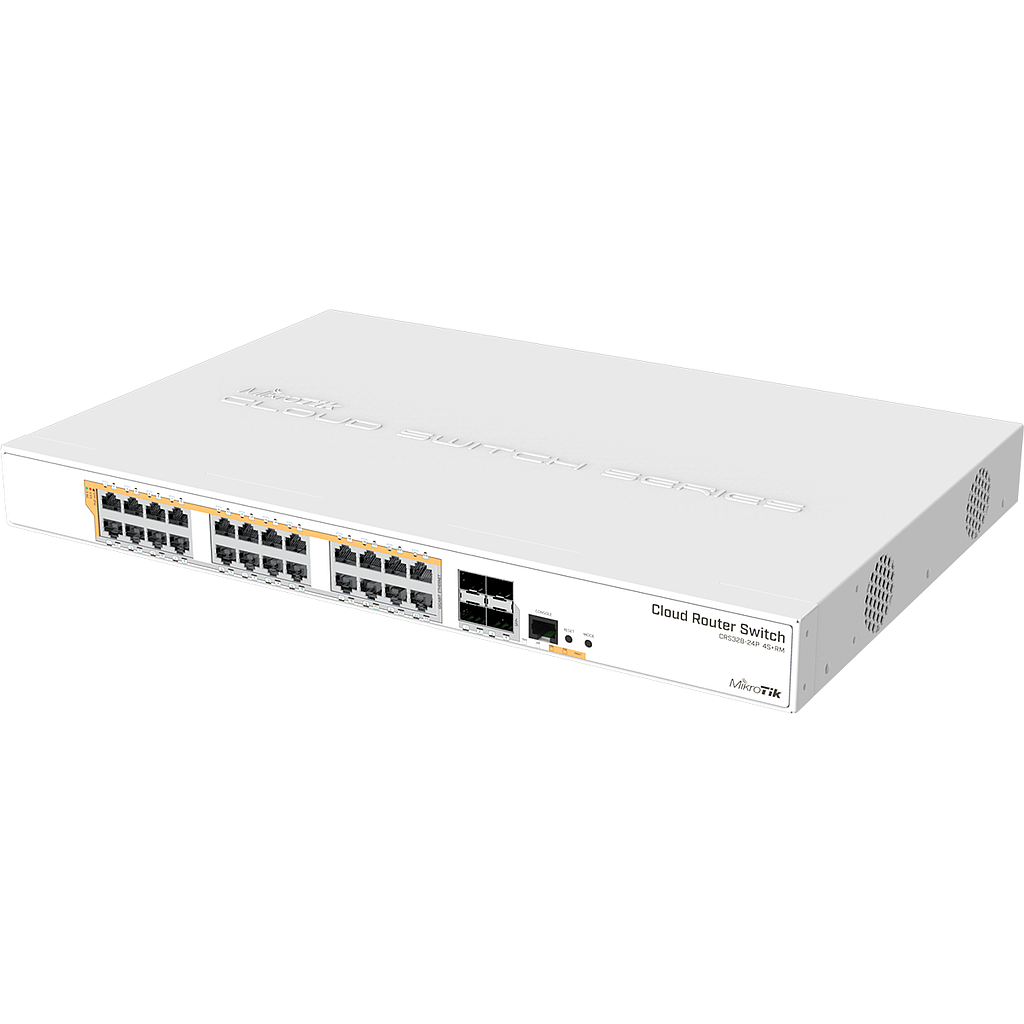

MikroTik switch 24 port Gigabit Ethernet router/switch with four 10Gbps SFP+ ports in 1U rackmount case, dual boot and PoE output, 500W
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Details | |
|---|---|
| Product code | CRS328-24P-4S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX3236 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX3236 |
| Dimensions | 443 x 300 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of PSU slots | 2 |
| Max power consumption | 494 W |
| Max power consumption without attachments | 44 W |
| Cooling type | 2 fans |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether24 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1000 mA |
| Max out per port output (input 30-57 V) | 450 mA |
| Max total out (A) | 20 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 4 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
