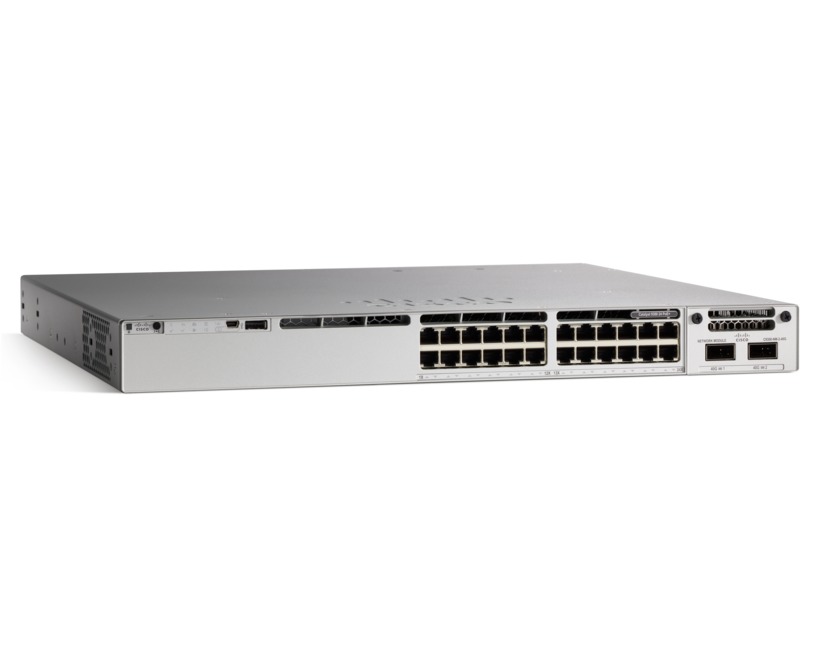

Cisco Catalyst 9300 24-port data only Network Advantage (müüdav ainult koos DNA litsentsiga)
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-9300-series-switches/nb-06-cat9300-ser-data-sheet-cte-en.html
Enclosure Type | Rack-mountable 1U |
|---|---|
Ports | 24 x 10/100/1000 |
Performance | Switching capacity: 128 Gbps Stacking bandwidth: 480 Gbps Forwarding rate: 154.76 Mpps |
Capacity | IPv4 routing table entries: 32000 IPv6 routing table entries: 16000 Flexible NetFlow entries: 64000 VLAN IDs: 4000 Switched virtual interfaces (SVIs): 2000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Features | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Power | AC 230 V (50 Hz) |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.5 cm x 44.5 cm x 4.4 cm |
Weight | 7.27 kg |
