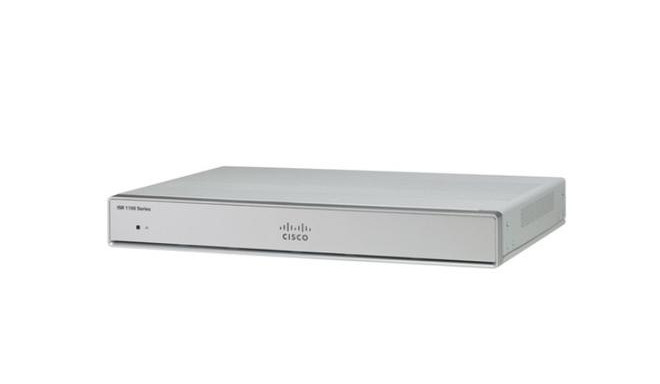

Cisco ISR 1100 4 ports DSL Annex M GE WAN router
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance: | Encryption throughput: 250 Mbps |
| Network / Transport Protocol: | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol: | SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm: | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method: | RADIUS |
| Features: | CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM |
| Compliant Standards: | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM: | 4 GB |
| Flash Memory: | 4 GB |
| Status Indicators: | Status |
| Communications | |
| Type: | DSL modem |
| Digital Signaling Protocol: | ADSL2, VDSL2+ |
| Protocols & Specifications: | ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M |
| Expansion / Connectivity | |
| Interfaces: | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP LAN: 2 x 1000Base-T - RJ-45 LAN: 1 x 1000Base-T (PoE+) - RJ-45 LAN: 1 x 1000Base-T (PoE) - RJ-45 USB 3.0: 1 x console WAN: 1 x VDSL2 / ADSL2+ |
| Power | |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight | |
| Width: | 32.3 cm |
| Depth: | 23 cm |
| Height: | 4.2 cm |
| Weight: | 2.59 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 65 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
