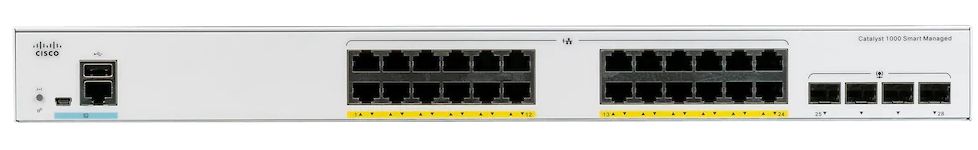

Cisco Catalyst 1000 24port GE, Full PoE, 4*1G
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-1000-series-switches/nb-06-cat1k-ser-switch-ds-cte-en.html
Enclosure Type | Rack-mountable |
|---|---|
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance | Forwarding bandwidth: 28 Gbps Switching bandwidth: 56 Gbps Forwarding rate (64-byte L3 packets): 41.67 Mpps |
Capacity | Unicast MAC addresses: 15360 IPv4 unicast direct routes: 542 IPv4 unicast indirect routes: 256 IPv6 unicast direct routes: 414 IPv6 unicast indirect routes: 128 IPv4 routes (static): 16 IPv6 routes (static): 16 IPv4 routes (Multicast): 1024 IPv6 groups (Multicast): 1024 IPv4/MAC security ACEs: 600 IPv6 security ACEs: 600 Active VLANs: 256 VLAN IDs: 4094 STP instances: 64 SPAN sessions: 4 MTU-L3 packet: 9198 byte |
Jumbo Frame Support | 10240 bytes |
Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
Power | AC 230 V (50 Hz) |
Dimensions (WxDxH) | 44.5 cm x 34.5 cm x 4.39 cm |
Weight | 4.6 kg |
