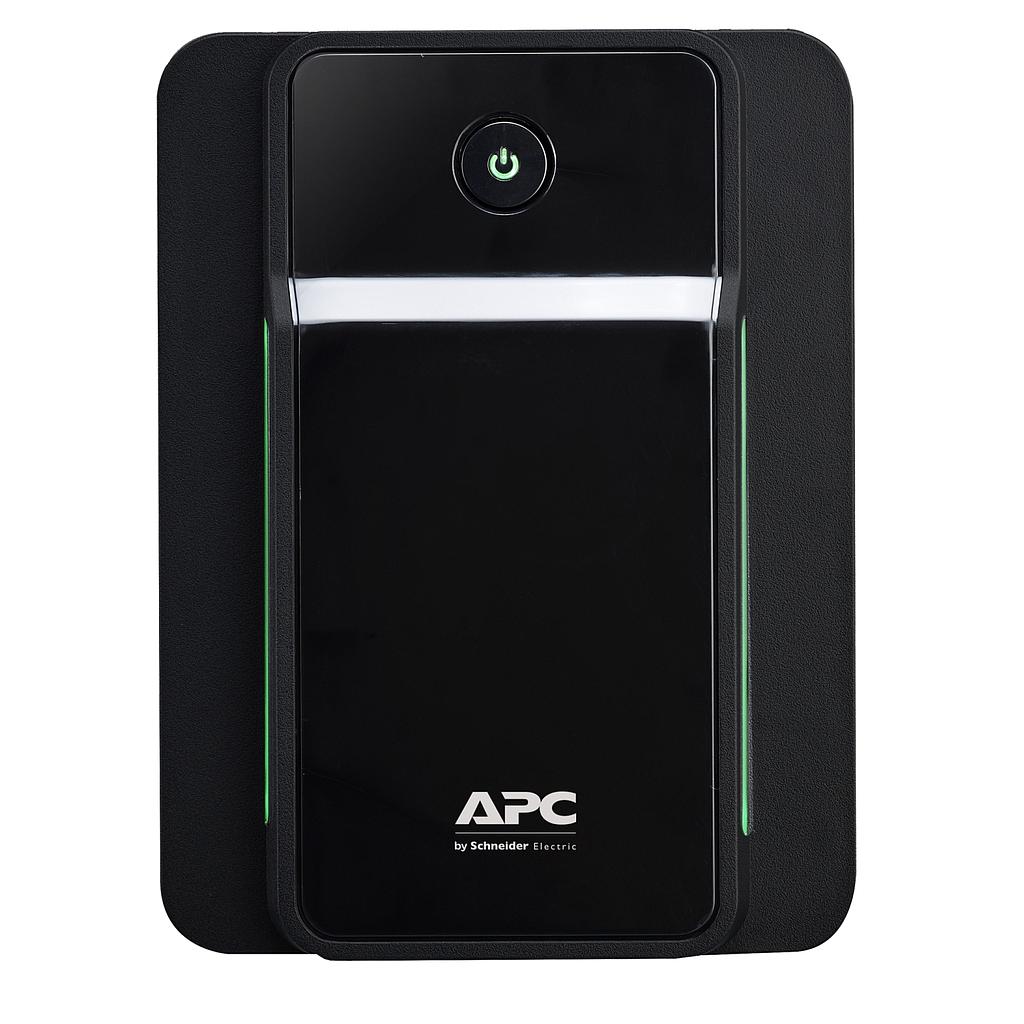

APC Back-UPS 750VA, 230V, AVR, schuko sockets
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.se.com/ee/et/product/download-pdf/BX750MI-GR?filename=Schneider+Electric_BackUPS_BX750MI-GR.pdf
| Main Input Voltage | 230 V |
|---|---|
| Nimivõimsus, W | 410 W |
| Nimivõimsus, VA | 750 VA |
| Toote või komponendi tüüp | Uninterruptible power supply (UPS) |
| Input Connection Type | Schuko CEE 7/7P |
| output connection type | 4 Schuko |
| Kaabli pikkus | 1,2 m |
| Kaablite arv | 1 |
| aku tüüp | Lead-acid battery |
| Käitusaeg | View Runtime Graph |
|---|---|
| Tõhusus | View Efficiency Graph |
| Battery recharge time | 8 h |
| aku pinge | 12 V |
| Aku mahutavus | 9,0 Ak |
| aku kasutusiga | 3…5 aasta(d) |
| Asendusaku | RBC17 |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Provided equipment | kasutusjuhend |
|---|
| Värv | Must |
|---|---|
| Kõrgus | 16 cm |
| Width | 12 cm |
| Sügavus | 35,5 cm |
| Netokaal | 5,4 kg |
| Mounting preference | No preference |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
|---|---|
| Pistiku standard | Schuko CEE 7 |
| Input voltage limits | 140...300 V |
| Input Power Factor at Full Load | 0,63 |
| Maximum configurable power in W | 410 W |
|---|---|
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:01:00 390 W |
| Half load runtime | 00:08:30 195 W |
| Maximum configurable power in VA | 750 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Toote sertifikaadid | CE CB EAC |
|---|---|
| Standardid | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Equipment protection policy | Lifetime : 50000 euros |
| Välisõhu töötemperatuur | 0…40 °C |
|---|---|
| Suhteline niiskus | 0…95 % mittekondenseeruv |
| Käitamiskõrgus | 0...3000 m |
| Ladustamise ümbritseva õhu temperatuur | −15…40 °C |
| Storage Relative Humidity | 0…95 % mittekondenseeruv |
| Säilituskõrgus | 0…3000 m |
| Akustiline tase | 40 dBA |
| IP kaitseaste | IP20 |
| Control panel | LED Status display with on line : on battery |
|---|
| Surge energy rate | 273 J |
|---|
| Pakendi tüüp 1 | PCE |
|---|---|
| Package 1 Height | 25 cm |
| Pakendi laius 1 | 43 cm |
| Pakendi pikkus 1 | 19,7 cm |
| Pakendi kaal 1 | 5,9 kg |
| SCC14 | 10731304410840 |
