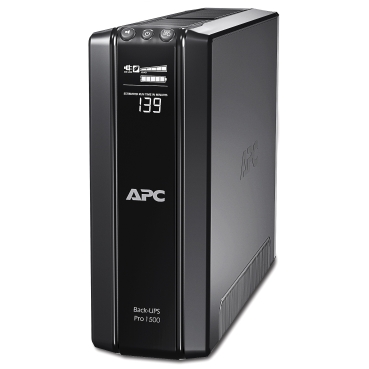

APC Back-UPS Pro, 1500VA/865W, tower, 230V, 10*IEC C13 outlets, AVR, LCD, user replaceable battery

APC Back-UPS Pro, 1500VA/865W, tower, 230V, 10*IEC C13 outlets, AVR, LCD, user replaceable battery

APC Back-UPS Pro, 1500VA/865W, tower, 230V, 10*IEC C13 outlets, AVR, LCD, user replaceable battery

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://www.se.com/ee/et/product/download-pdf/BR1500GI?filename=Schneider+Electric_BackUPS-Pro_BR1500GI.pdf

Peamine

Main Input Voltage	230 V
Main Output Voltage	230 V
Nimivõimsus, W	865 W
Nimivõimsus, VA	1500 VA
Toote või komponendi tüüp	Uninterruptible power supply (UPS)
Input Connection Type	IEC 60320 C13
output connection type	5 IEC 60320 C13 5 IEC 60320 C13 tõusulaine 2 IEC Jumpers
Kaablite arv	1
aku tüüp	Lead-acid battery

Aku ja tööaeg
Käitusaeg	View Runtime Graph
Tõhusus	View Efficiency Graph
Battery recharge time	8 h
Number of battery replacement quantity	1
aku pinge	24 V
Aku mahutavus	9,0 Ak
Battery charger power	23 W rated
aku kasutusiga	3…5 aasta(d)
Asendusaku	APCRBC124
Battery graph comments	This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v

Üldine teave
Provided equipment	1, detachable IEC power cord telephone cable kasutusjuhend USB-kaabel

Füüsiline
Värv	Must
Kõrgus	30,1 cm
Width	11,2 cm
Sügavus	38 cm
Netokaal	12,7 kg
Mounting preference	No preference
USB compatible	No

Sisend
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits	156...300 V adjustable 176...294 V
Switching current capacity	10 A

Väljund
Maximum configurable power in W	865 W
Output frequency	50/60 Hz +/- 3 Hz sync to mains
Crest factor	3 : 1
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
Maximum configurable power in VA	1500 VA
Transfer time	10 ms typical : 12 ms maximum

Vastavus
Toote sertifikaadid	A-Tick C-Tick CE GOST Telepermit TÜV
Märgistus	GS Mark
Standardid	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Equipment protection policy	Lifetime : 200000 AUD Lifetime : 150000 euros Lifetime : 75000 GBP

Keskkond
Välisõhu töötemperatuur	0…40 °C
Suhteline niiskus	0…95 %
Käitamiskõrgus	0...30000 ft
Ladustamise ümbritseva õhu temperatuur	−15…45 °C
Storage Relative Humidity	0…95 %
Säilituskõrgus	0,0000000000…15240,0000000000 m
Akustiline tase	45 dBA

Kommunikatsioon ja juhtimine
Control panel	Multifunction LCD status and control console
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Ülelaine kaitse ja filtreerimine
Surge energy rate	441 J
Noise suppression	Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

Pakendiüksused
Pakendi tüüp 1	PCE
Package 1 Height	40,000 cm
Pakendi laius 1	25,000 cm
Pakendi pikkus 1	49,000 cm
Pakendi kaal 1	14,000 kg
SCC14	10731304268748
