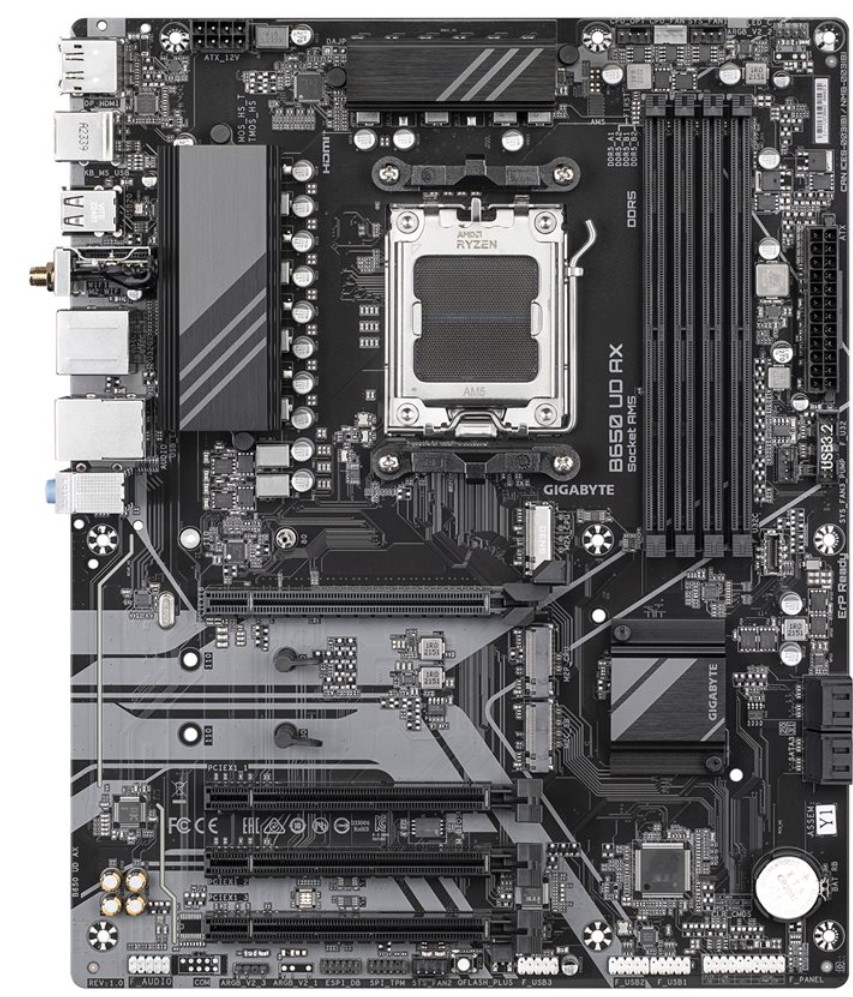

Gigabyte B650 UD AX - 1.0 - motherboard - ATX - socket AM5 - AMD B650 chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 6, Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD audio (8-channel)
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | |
| Max Size: | 256 GB |
| Technology: | DDR5 |
| Bus Clock: | 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H / Realtek RTL8851 |
| Network Interfaces: | 802.11a/b/g/n/ac/ax, Gigabit Ethernet, Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU 4 x DIMM 288-pin 1 x PCIe x16 3 x PCIe 3.0 x16 (x1 mode) 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) 2 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe -connectors: 3 x M.2 PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x HDMI 1 x DisplayPort 6 x USB 2.0 2 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 1 1 x LAN (Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x PS/2 keyboard / mouse 2 x aerial |
| Internal Interfaces: | 1 x SPI - header 1 x audio - header 6 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header 1 x serial - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring: | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
| Hardware Features: | 6+2+2 Phase Power Design, PCIe EZ Latch, GIGABYTE Smart Fan 6, Q-Flash Plus, RGB FUSION, 6 Layer PCB, Audio Noise Guard, Ultra Durable, DIY Friendly Design |
| Miscellaneous | |
| Software Included: | Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
