Tehnilised andmed

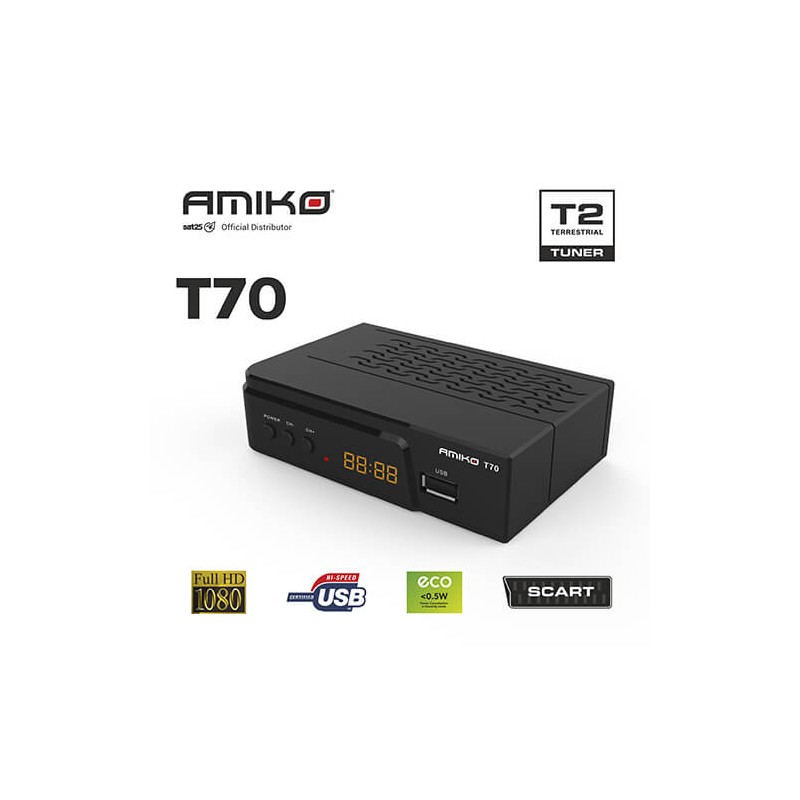

https://www.amikostb.com/product/376-amiko-t70
One High Speed USB 2.0 Connection
Full HD (1080p) Output via Digital Video Output
Channel Recording to External Storage Devices
Timeshift support
Channel Recording & Timeshifting Simulteniously (optional)
True-color, User Friendly On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
MORE FEATURES
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Exciting games embedded
Multi-Language support
Power Consumption in Stand-By: <0.5W
Tuner Type: DVB-T2
Frequency Range: 108~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6
System Resources
Main Processor: 594MHz
Flash Memory: 32MBits
DDR RAM: 512Mbits
MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz
Power Supply
Input Voltage: 5V DC
Power Consumption: 10W Max
Stand-By Power Consumption: <0.5W
A/V & Data Input/Output
SCART: CVBS Video out / Audio L/R out
USB: One USB 2.0 slot
Digital Video Output
Physical Specifications
Size: 130mm*30mm*65mm
Net Weight: 0.10KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
