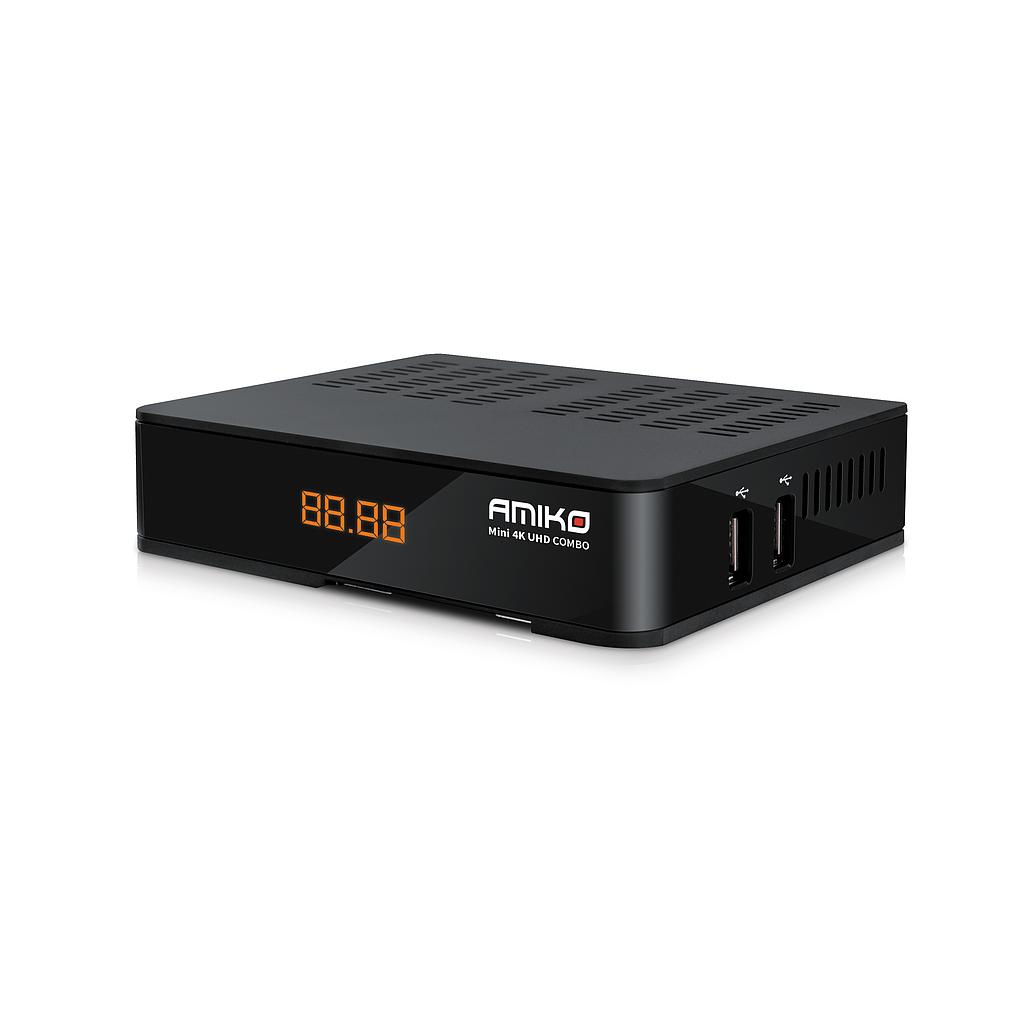

Amiko Mini Combo 4K UHD

4K UHD Digital Combo new model 2021 HD/UHD/H.265
With Conax embedded card reader
2 High Speed USB 2.0 Connection Suppor
External infra port
Ethernet connection
TimeShifting Support
Software Upgrade via USB
Digital Audio Bit-Stream via HD OUT
MKV, AVI, MPG, MP4, TS, VOB, JPEG & MP3 Playback Support
Low Power Consumption in Stand-By

Tuners & Demodulation

Tuner Type: DVB-T2 / DVB-C
Frequency Range: 48 Mhz - 862 Mhz
RF Input Level: "-80dBm to -20dBm"
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal
and extended, 16K normal and extended,
32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM, 256QAM
/ Both rotated and non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max. 400mA
Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

MPEG TS A/V Decoding

Transport Stream: MPEG-2, MPEG-4, H.264, H.265
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: UHD 4K x 2K, HEVC/H.265, MPEG-4/H.264 SP@L3 to ASP@L5, MP@ML, MP@HL, MP@L4.1, HP@L4.1
Video Resolution: 720*480p/i, 720*576p/i,1280*720p, 1920*1080p/i, 3840 *2160p
Audio Decoding: AAC-LC, HE-AAC, LPCM, MP3, WMA, WAV
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

System Resources

Main Processor: 1000 MHz
Flash Memory: Serial Flash 8MB x 1
DDR RAM: DDRIII 1866 128MBx2

A/V & Data Input/Output

Ethernet: 10/100M RJ45
USB: Two USB 2.0 slot Compatible
Digital Video Output
S/PDIF: Coaxial Digital Audio or Dolby Digital Bit Stream Output
SCART: (1-CVBS, 1-L/R,SL,FB),or RCA output
IR: Jack-type, External IR sensor connection
RS232: Jack-type, Transfer rate 115.2Kbps, 9 pin D-sub Type

Physical Specifications

Size[W*H*D]: 146mm*110mm*35mm
Net Weight: 0.25 Kg
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
