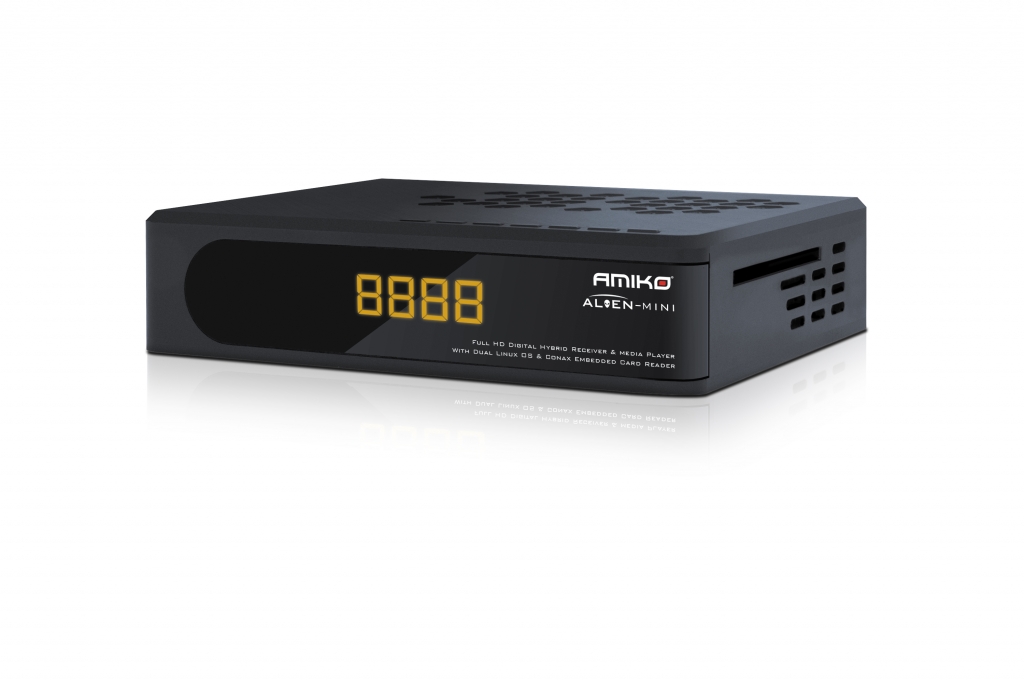

Amiko Alien mini SPARK (Gi S8120 lite), dual boot Linux receiver ENIGMA/SPARK

◾Conax Embedded Card Reader
◾Wireless Network & 3G Modem Support
◾Online User's Manual & F.A.Q.
◾Opera Web Browser & Internet Applications
◾Full HD - 1080p
•MPEG-Fully DVB-S / DVB-S2 HD compliant
• Linux Embedded OS
• Conax Embedded Card Reader
• Endless possibilities with Plug-In support
• Compact design
• Mountable on TV’s back, or on wall
• External IR sensor (included in the package)
• YouTube, SHOUTcast Radio, and Picasa Compatible
• Weather forecast & Rss Reader Functions
• S/PDIF for digital audio or Dolby Digital Bit-Stream output
• DiSEqC 1.0, 1.1, 1.2 and USALS
• Endless channels (TV and Radio) programmable
• Multilingual menu text support
• Channel list editing
• Favourite channel list editing
• True-color On-Screen Display (OSD)
• Full Picture In Graphic (PIG) function
• Electronic Program Guide (EPG) for on screen channel information
• Subtitle supported
• Teletext supported by software emulation
• Parental lock facility by channel and program event
• Program and Channel information transfer from receiver to receiver
• HDMI HD Video/Audio Output
• Two High Speed USB2.0 connections
• RTC (Real-Time-Clock)
• Time Shift
• Recording one channel and Time Shifting another channel (optional)
• FullHD 1080p output via HDMI
• AVI, MKV, MPG, TS, M2TS, FLV, DAT, ASF, MP3 playback
• Software Upgrade support via USB, RS232 or Internet
• Message, FAQ and User Manual support
• Download files from FTP server

SYSTEM RESOURCES
Main Processor: 450M Hz based CPU
Flash Memory: Nor flash: 8MB X 1 ; Nand flash:512MB X 1
DDR SDRAM: DDR2 128MB x 2

Tuner/Front-end
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V, Horizontal: +18V/+19V, Current: Max. 500mA, Overload Protection
22KHz Tone: Frequency: 22±1KHz
DiSEqC Control: Amplitude: 0.6±0.2V, Version 1.0, 1.1 1.2, USALS Available
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps, Convolution Code Rate
1/2, 2/3, 3/4, 5/6,7/8,1/4,1/3,2/5,3/5,4/5,8/9,9/10 and Auto

POWER SUPPLY
Input Voltage: Free Voltage (100~240V AC, 50/60Hz)
Power Consumption: 20W MAX

MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p,1920*1080i, 1920*1080p
Audio Decoding: MEPG-1 layer I/II, Mpeg2 layerII, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

A/V & DATA INPUT/OUTPUT
RCA A/V: Video CVBS output, Audio L/R output (Jack Type)
RS-232C: Transfer rate 115.2Kbps, Jack to 9 pin D-sub Type
RJ-45: 10M/100M
External IR: Jack type
USB: Two USB 2.0 slots
HDMI: VER1.3, Type A

Physical Specifications
Size[W*H*D]: 144mm*40mm*110mm
Net Weight: 0.5KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
