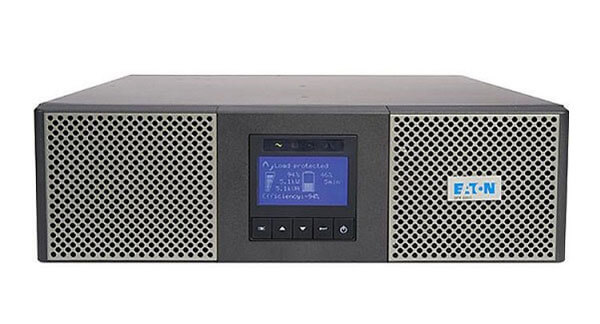

Eaton 9PX 5000i RT3U Netpack G2
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units): | 3U |
| Rack Size: | 19" |
| Colour: | Black, silver |
| Power Device | |
| UPS Technology: | On-line |
| Input Voltage: | AC 200/208/220/230/240 V |
| Input Voltage Range: | AC 100 - 276 V |
| Frequency Provided: | 50/60 Hz |
| Input Wiring: | 1-phase |
| Frequency Required: | 40 - 70 Hz |
| Input Connectors: | 1 x hardwire |
| Power Output Connectors Details: | 6 x power IEC 60320 C13 6 x power IEC 60320 C39 1 x hardwire |
| Output Voltage: | AC 200/208/220/230/240 V ± 1% - 50/60 Hz |
| Power Capacity: | 5000 Watt / 5000 VA |
| Output Waveform: | Sinewave |
| Circuit Protection: | Circuit breaker |
| Efficiency: | 96.5% |
| Power Factor (PF): | 0.99 |
| Battery | |
| Type: | Expandable |
| Quantity: | 15 |
| Technology: | Lead Acid |
| Voltage Provided: | 12 V |
| Capacity: | 5 Ah |
| Run Time (Up To): | 3 min at full load 9 min at half load |
| Features: | Sealed |
| Networking | |
| Remote Management Interface: | Ethernet 10/100/1000, RS-232, USB |
| Expansion / Connectivity | |
| Interfaces: | 1 x RS-232 - 9 pin D-Sub (DB-9) 1 x USB - 4 pin USB Type B 1 x EPO (emergency power off) - mini terminal block 1 x relay output - mini terminal block 1 x management (Gigabit Ethernet) - RJ-45 |
| Expansion Slots: | 1 (total) / 0 (free) x Expansion Slot |
| Miscellaneous | |
| Included Accessories: | 3 cable glands, network management card, tower support stands |
| Cables Included: | 2 x power cable (IEC) - external - 1.2 m USB cable - external - 1.8 m |
| Rack Mounting Kit: | Included |
| Features: | Advance Battery Management+ (ABM+), automatic battery test, deep discharge protection, automatic external battery detection, double conversion, LCD display, internal bypass, automatic shut down, hot-swappable batteries |
| Compliant Standards: | LVD, EMC, RoHS, REACH, WEEE, Packaging Directive, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, cULus, UKCA, CM, UKR, RCM |
| Sustainability Information | |
| ENERGY STAR: | Yes |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - electronics - 3 years Limited warranty - battery - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Sound Emission: | 40 dB |
| Dimensions & Weight | |
| Width: | 44 cm |
| Depth: | 68.4 cm |
| Height: | 13 cm |
| Weight: | 43.1 kg |
