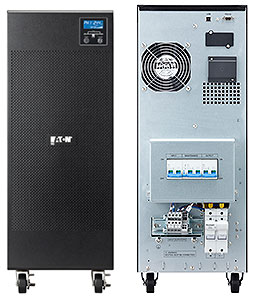

Eaton 9E 6000i

1 677.18 € 1677.18 EUR

1 640.67 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

PRODUCT NAME
Eaton 9E UPS
CATALOG NUMBER
9E6KI
PRODUCT LENGTH/DEPTH
61.29 cm
PRODUCT HEIGHT
70.85 cm
PRODUCT WIDTH
26.24 cm
PRODUCT WEIGHT
68 kg
WARRANTY
1 year
COMPLIANCES
CE Marked
TUV
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UPC
743172067661

BATTERY

BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
BATTERY REPLACEMENT
Replacable batteries
BATTERY QUANTITY
15
BATTERY MANAGEMENT
  • Automatic battery test
  • Deep discharge protection
BATTERY RATING
12 V / 9 Ah
EXTENDED BATTERY CAPABILITY
Yes

ELECTRICAL OUTPUT

VOLTAGE
230V
WATTAGE
4800 W
OUTPUT POWER FACTOR
0.8
OUTPUT VOLTAGE RANGE
220/230/240 V +/- 2%
OUTPUT WAVEFORM
Sine wave
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
3
FEED TYPE
1
TOPOLOGY
Online/Double-conversion
VA RATING
6000 VA

ELECTRICAL INPUT

INPUT CONNECTION
Hardwired/fixed connection
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
NOMINAL FREQUENCY
50/60 Hz
INPUT POWER FACTOR
>.99
INPUT VOLTAGE RANGE
176-276 V (110-276 V with derating)
INPUT FREQUENCY RANGE
45-66Hz

COMMUNICATIONS

INCLUDES NETWORK CARD
No
COMMUNICATION
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote power off
  • Communication slot
ETHERNET INTERFACE
No
USER INTERFACE
LCD Display
POTENTIAL FREE SWITCH CONTACT
Yes
EXPANSION SLOTS
One slot for optional communication card
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE
Other

ENVIRONMENTAL

ALTITUDE
3000 m
NOISE LEVEL
<55 dB at 1 meter
TEMPERATURE RANGE
0° to 40°C
RELATIVE HUMIDITY
0-95% non-condensing

ADDITIONAL SPECIFICATIONS

CONSTRUCTION TYPE
Free standing model
PACKAGE CONTENTS
  • UPS
  • USB cable
  • Serial cable
  • User manual
PHASE (OUTPUT)
1
INTERNAL BYPASS
Yes
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black
EFFICIENCY
91
RACK MOUNTING KIT
No
PHASE (INPUT)
1
HOT SWAP POWER
No
