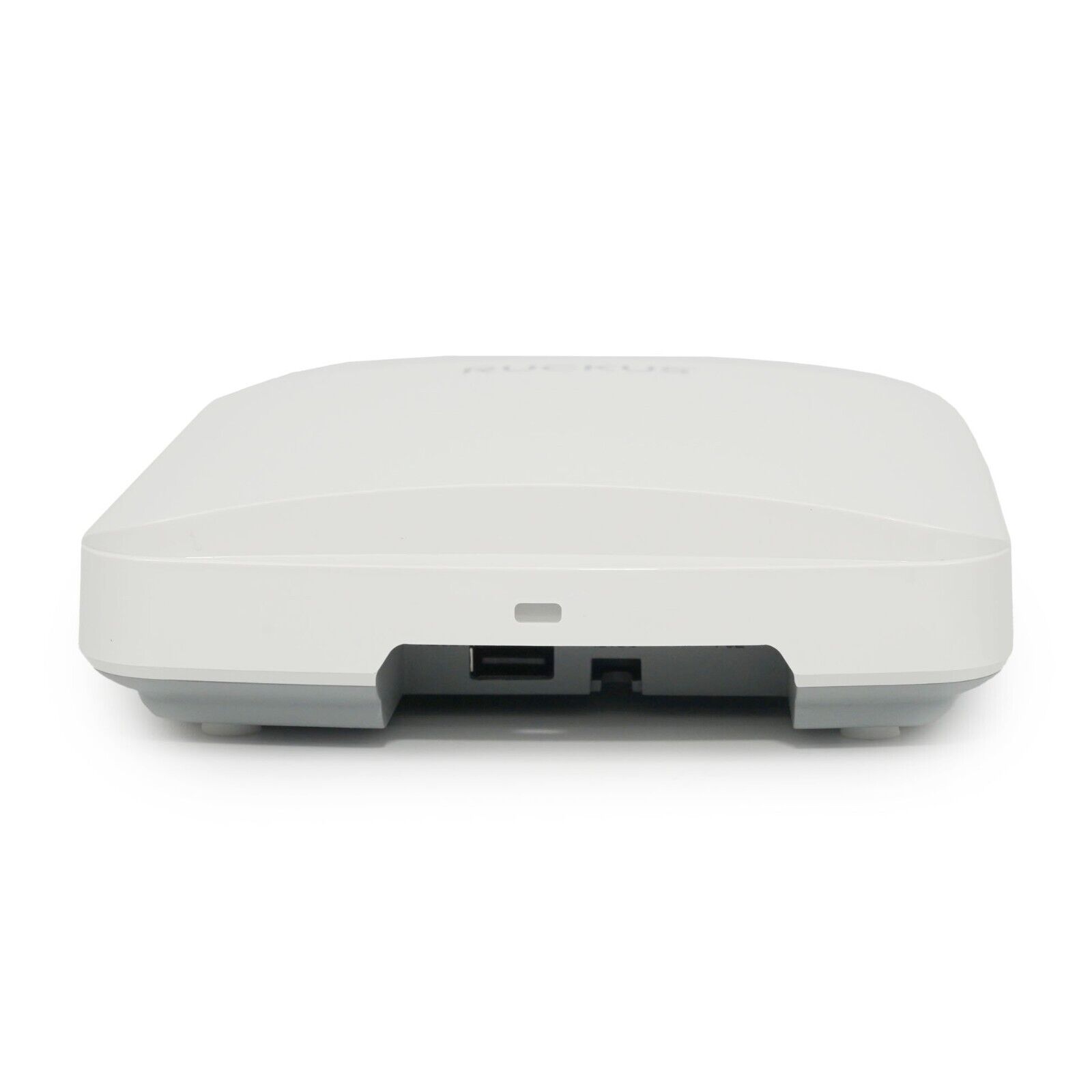

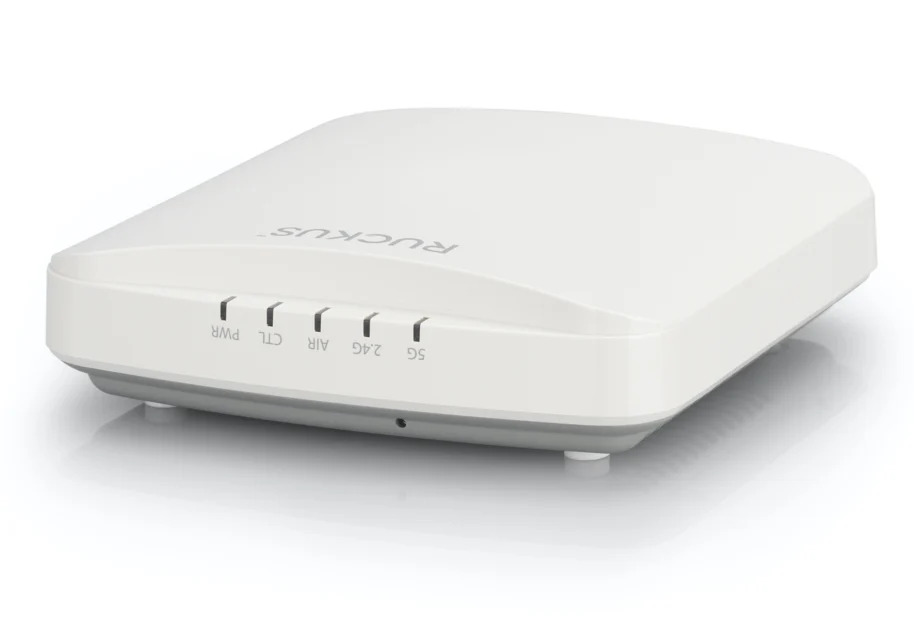

  3. Ruckus R350 dual-band 802.11abgn/ac/ax Wireless Access Points, 2x2:2 streams (2.4GHz/5GHz) OFDMA, MU-MIMO, BeamFlex+, 802.3af PoE support. Does not include power adapter or PoE injector.

Ruckus R350 dual-band 802.11abgn/ac/ax Wireless Access Points, 2x2:2 streams (2.4GHz/5GHz) OFDMA, MU-MIMO, BeamFlex+, 802.3af PoE support. Does not include power adapter or PoE injector.

350.00 € 350.0 EUR

350.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://www.ruckusnetworks.com/products/wireless-access-points/r350/

WI-FI
Wi-Fi Standards
  • IEEE 802.11a/b/g/n/ac/ax
Supported Rates
  • 802.11ax: 4 to 1774 Mbps
  • 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)
  • 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
  • 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels
  • 2.4GHz: 1-13
  • 5GHz: 36-64, 100-144, 149-165
MIMO
  • 2x2 SU-MIMO
  • 2x2 MU-MIMO
Spatial Streams
  • 2 streams SU/MU-MIMO 5GHz
  • 2 streams SU/MU-MIMO 2.4GHz
Radio Chains and Streams
  • 2x2:2 (5 GHz)
  • 2x2:2 (2.4GHz)
Channelization
  • 20, 40, 80MHz
Security
  • WPA-PSK, WPA-TKIP, WPA2 , WPA3-Personal, WPA3-Enterprise, AES, WPA3, 802.11i, Dynamic PSK
  • WIPS/WIDS
Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
  • Hotspot
  • Hotspot 2.0
  • Captive Portal
  • WISPr
RF
Antenna Type
  • BeamFlex adaptive antennas
  • Adaptive antenna that provides up to 64 unique antenna patterns per band
Antenna Gain (max)
  • Up to 3dBi
Peak Transmit Power (aggregate across MIMO chains)
  • 2.4GHz: 23 dBm
  • 5GHz: 23 dBm
Minimum Receive Sensitivity1
  • -101 dBm
Frequency Bands
  • ISM (2.4-2.484GHz)
  • U-NII-1 (5.15-5.25GHz)
  • U-NII-2A (5.25-5.35GHz)
  • U-NII-2C (5.47-5.725GHz)
  • U-NII-3 (5.725-5.85GHz)
2.4GHZ RECEIVE SENSITIVITY (DBM)
HT20HT40
MCS0MCS7MCS0MCS7
-94-70-91-72
HE20HE40
MCS0MCS7MCS0MCS7
-94-70-91-72
5GHZ RECEIVE SENSITIVITY (DBM)
VHT20VHT40VHT80
MCS0MCS7MCS0MCS7MCS0MCS7
-95-76-92-73-89-70
HE20HE40HE80
MCS0MCS7MCS0MCS7MCS0MCS7
-95-76-92-73-89-70
2.4GHZ TX POWER TARGET
RatePout (dBm)
MCS0 HT2020
MCS7 HT2015
MCS8 VHT2014.5
MCS9 VHT4013
MCS11 HE4012
5GHZ TX POWER TARGET
RatePout (dBm)
MCS0 VHT2020
MCS7 VHT2017
MCS0 VHT40, VHT8020
MCS7 VHT40, VHT8017
MCS11, HE20, HE40, HE8013
PERFORMANCE AND CAPACITY
Peak PHY Rates
  • 2.4GHz: 574Mbps
  • 5 GHz: 1200Mbps
Client Capacity
  • Up to 256 clients per AP
SSID
  • Up to 16 per AP
RUCKUS RADIO MANAGEMENT
Antenna Optimization
  • BeamFlex+
  • Polarization Diversity with Maximal Ratio Combining (PD-MRC)
Wi-Fi Channel Management
  • ChannelFly
  • Background Scan Based
Client Density Management
  • Adaptive Band Balancing
  • Client Load Balancing
  • Airtime Fairness
  • Airtime-based WLAN Prioritization
SmartCast Quality of Service
  • QoS-based scheduling
  • Directed Multicast
  • L2/L3/L4 ACLs
Mobility
  • SmartRoam
Diagnostic Tools
  • SpeedFlex
NETWORKING
Controller Platform Support
  • SmartZone
  • ZoneDirector
  • Unleashed2
  • Cloud
  • Standalone
Mesh
  • SmartMesh™ wireless meshing technology. Self-healing Mesh
IP
  • IPv4, IPv6
VLAN
  • 802.1Q (1 per BSSID or dynamic per use based on RADIUS
  • VLAN Pooling
  • Port-based
802.1x
  • Authenticator & Supplicant
Tunnel
  • L2TP, GRE, Soft-GRE
Policy Management Tools
  • Application Recognition and Control
  • Access Control Lists
  • Device Fingerprinting
  • Rate Limiting
PHYSICAL INTERFACES
Ethernet
  • 1 x 1GbE port, RJ-45
USB
  • 1 USB 2.0 Port, Type A
PHYSICAL CHARACTERISTICS
Physical Size
  • 14.60(L) x 15.59(W) x 3.93(H) cm
  • 5.75(L) x 6.14(W) x 1.55(H) in
Weight
  • 368g (13 oz)
Mounting
  • Wall, Drop ceiling, Desk
  • Secure bracket (sold separately)
Physical Security
  • Hidden latching mechanism
  • T-bar Torx
Operating Temperature
  • 0 ºC (32 ºF) to 40 ºC (104 ºF)
Operating Humidity
  • Up to 95%, non-condensing
POWER3
Power SupplyMaximum Power Consumption
PoE (Full Functionality)
  • 12.62W
DC input
  • 11.4 W
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance4
  • Wi-Fi CERTIFIED™ a, b, g, n, ac
  • Wi-Fi CERTIFIED 6™
  • WPA3™ -Enterprise, Personal
  • Wi-Fi Enhanced Open™
  • Wi-Fi Agile Multiband™
  • Passpoint®
  • Vantage
  • WMM
Standards Compliance5
  • EN 60950-1 Safety
  • EN 60601-1-2 Medical
  • EN 61000-4-2/3/5 Immunity
  • EN 50121-1 Railway EMC
  • EN 50121-4 Railway Immunity
  • IEC 61373 Railway Shock & Vibration
  • UL 2043 Plenum
  • EN 62311 Human Safety/RF Exposure
  • WEEE & RoHS
  • ISTA 2A Transportation
SOFTWARE AND SERVICES
Location Based Services
  • SPoT
Network Analytics
  • SmartCell Insight (SCI)
Security and Policy
  • Cloudpath
ORDERING INFORMATION
901-R350-XX02
  • R350 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, 2x2:2 + 2x2:2 streams, adaptive antennas, dual ports, PoE support. Plenum rated. Includes adjustable acoustic drop ceiling bracket. Does not include power adaptor.

See RUCKUS price list for country-specific ordering information.

Warranty: Sold with a limited lifetime warranty.

For details see: http://support.ruckuswireless.com/warranty.

OPTIONAL ACCESSORIES
902-0162-XXYY
  • PoE injector (24W) (Sold in quantities of 1, 10 or 100)
902-0195-0000
  • Spare, T-bar ceiling mount kit for mounting to flush frame ceiling
902-0120-0000
  • Spare, Accessory Mounting Bracket
902-0173-XXYY
  • Power Adapter (12V, 1.0A, 12W) (Sold in quantities of 1 or 10)
