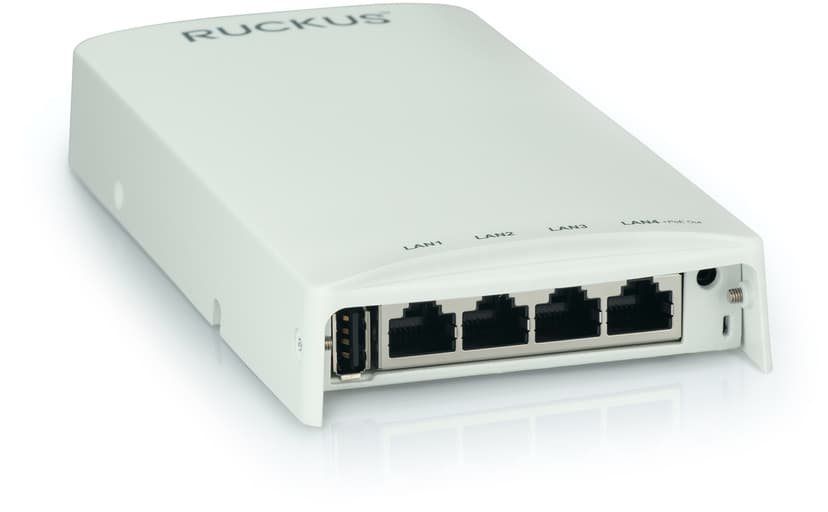

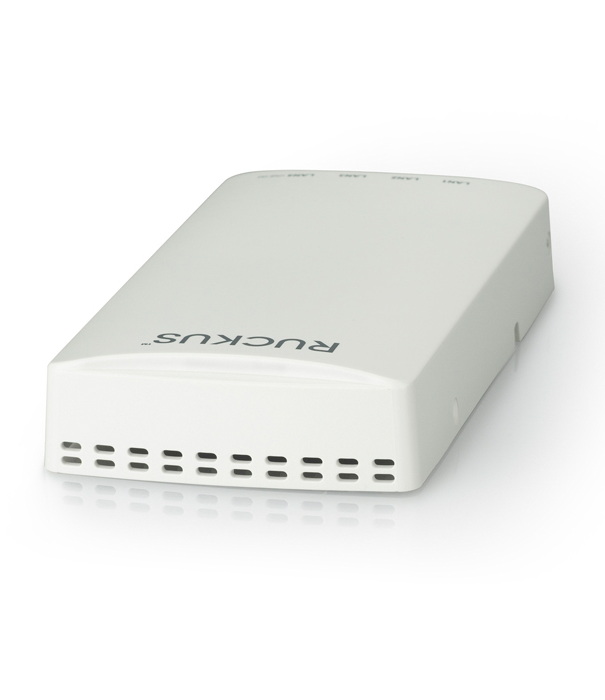

  3. Ruckus Wi-Fi 6 dual-band concurrent 2.4 GHz & 5 GHz, Wired/Wireless Wall Switch, BeamFlex+, 1 10/100/1000 & 4 10/100/1000 Ethernet Access Ports, POE in, PoE out (one port), USB port. Does not include DC power supply.

Ruckus Wi-Fi 6 dual-band concurrent 2.4 GHz & 5 GHz, Wired/Wireless Wall Switch, BeamFlex+, 1 10/100/1000 & 4 10/100/1000 Ethernet Access Ports, POE in, PoE out (one port), USB port. Does not include DC power supply.

395.00 € 395.0 EUR

395.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://www.ruckusnetworks.com/products/wireless-access-points/h550/

WI-FI
Wi-Fi Standards
  • IEEE 802.11a/b/g/n/ac/ax
Supported Rates
  • 802.11ax: 4 to 1,774 Mbps (MCS0 to MCS11, NSS=1 to 2 for HE 20/40/80)
  • 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT 20/40/80)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)
  • 802.11a/g: 6 to 54 Mbps
  • 802.11b: 1 to 11 Mbps
Supported Channels
  • 2.4Ghz: 1-13
  • 5Ghz: 36-64, 100-144, 149-165
MIMO
  • 2x2 SU-MIMO
  • 2x2 MU-MIMO
Spatial Streams
  • 2 Streams SU/MU-MIMO (2.4Ghz & 5Ghz)
Radio Chains and Streams
  • 2x2:2 (2.4Ghz & 5Ghz)
Channelization
  • 20, 40, 80MHz
Security
  • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE
  • WIPS/WIDS
Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
  • Captive Portal
  • Hotspot
  • Hotspot 2.0
  • WISPr
RF
Antenna Type
  • BeamFlex+ adaptive antennas with polarization diversity
  • Adaptive antenna that provides multiple unique antenna patterns
Antenna Gain (max)
  • Up to 1dBi
Peak Transmit Power (aggregate across MIMO chains)
  • 2.4GHz: 19dBm
  • 5GHz: 22dBm
Minimum Receive Sensitivity1
  • -100dBm
Frequency Bands
  • ISM (2.4-2.484GHz)
  • U-NII-1 (5.15-5.25GHz)
  • U-NII-2A (5.25-5.35GHz)
  • U-NII-2C (5.47-5.725GHz)
  • U-NII-3 (5.725-5.85GHz)
2.4GHZ RECEIVE SENSITIVITY (DBM) - PER RADIO CHAIN
HT20HT40VHT20VHT40
MCS0MCS7MCS0MCS7MCS0MCS7MCS0MCS7
-94-75-91-72-94-75-91-72
HE20HE40
MCS0MCS7MCS9MCS11MCS0MCS7MCS9MCS11
-94-75-71-65-91-72-68-62
5GHZ RECEIVE SENSITIVITY (DBM) - PER RADIO CHAIN
VHT20VHT40VHT80
MCS0MCS7MCS8MCS9MCS0MCS7MCS8MCS9MCS0MCS7MCS8MCS9
-97-76-72---92-73---67-89-70---64
HE20HE40HE80
MCS0MCS7MCS9MCS11MCS0MCS7MCS9MCS11MCS0MCS7MCS9MCS11
-95-76-70-65-92-73-67-62-89-70-64-59
2.4GHZ TX POWER TARGET
RatePout (dBm)
MCS0 HT2016
MCS7 HT2015
MCS8 VHT2014
MCS9 VHT4013
MCS11 HE4011
5GHZ TX POWER TARGET
RatePout (dBm)
MCS0 HT2019
MCS7 VHT40, VHT8015.5
MCS9 VHT40, VHT8014.5
MCS11 HE20, HE40, HE8012
PERFORMANCE AND CAPACITY
Peak PHY Rates
  • 2.4GHz: 574Mbps
  • 5GHz: 1,200Mbps
Client Capacity
  • Up to 512 clients per AP
SSID
  • 8 per radio
RUCKUS RADIO MANAGEMENT
Antenna Optimization
  • BeamFlex+
  • Polarization Diversity with Maximal Ratio Combining (PD-MRC)
Wi-Fi Channel Management
  • ChannelFly
  • Background Scan Based
Client Density Management
  • Adaptive Band Balancing
  • Client Load Balancing
  • Airtime based WLAN Prioritization
  • Airtime Fairness
SmartCast Quality of Service
  • QoS-based scheduling
  • Directed Multicast
  • L2/L3/L4 ACLs
Mobility
  • SmartRoam
Diagnostic Tools
  • Spectrum Analysis
  • SpeedFlex
NETWORKING
Controller Platform Support
  • SmartZone
  • ZoneDirector
  • Unleashed2
  • Cloud
  • Standalone
Mesh
  • SmartMesh™ wireless meshing technology. Self-healing Mesh
IP
  • IPv4, IPv6, dual stack
VLAN
  • 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
  • VLAN Pooling
  • Port-based
802.1x
  • Authenticator and Supplicant
Tunnel
  • L2TP, GRE, Soft-GRE
Policy Management Tools
  • Application Recognition and Control
  • Access Control Lists
  • Device Fingerprinting
  • Rate Limiting
IoT
  • Integrated BLE and Zigbee (Dual Concurrent)
PHYSICAL INTERFACES
Ethernet
  • 1x 1GbE port, RJ-45, PoE In – 802.3bt Class 5
  • 4x 1GbE ports, RJ-45, one PoE Out port – 802.3af (901-H550-XX00) or 48v passive PoE (901-H550-XX02)
USB
  • 1 USB 2.0 port, Type A
PHYSICAL CHARACTERISTICS
Physical Size
  • 89.5 mm (W) x 178.5 mm (L), 29.3 mm (H)
  • 3.52in (W) x 7.03in (L) x 1.15in (H)
Weight
  • 278g (0.613lbs) without bracket
  • 350g (0.772lbs) with bracket
Mounting
  • Electrical wallbox; Standard US and EU single gang wall jack
  • Optional bracket for offset & wall mount
Operating Temperature
  • 0°C (32°F) - 40°C (104°F)
Operating Humidity
  • Up to 95%, non-condensing
POWER CONFIGURATION OPTIONS3
Power Mode802.3af802.3at802.3bt, uPoE, PoH
Wi-Fi (2.4GHz) 2x2Tx Power (per Chain)16dBm16dBm16dBm
Wi-Fi (5GHz) 2x2Tx Power (per Chain)19dBm19dBm19dBm

IoT

Radios		BLEEnabledEnabledEnabled
ZigbeeEnabledEnabledEnabled
Ethernet LAN Ports (4x)EnabledEnabledEnabled
PSEPoE_OutDisabledDisabledEnabledEnabledEnabled
Power @ PDNANA8.4W12.4W12.95W
Maximum Cable LengthNANA20m20m100m
USBDisabledEnabledEnabledDisabledEnabled
Power Consumption12.54W15.9W24.91W25.48W32.21W
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance4
  • Wi-Fi CERTIFIED™ a, b, g, n, ac
  • Wi-Fi CERTIFIED 6™
  • WPA3 Enterprise Personal
  • Wi-Fi Enhanced Open™
  • Wi-Fi Agile Multiband™
  • Passpoint®
  • Vantage
  • WMM®
Standards Compliance5
  • EN 60950-1 Safety
  • EN 60601-1-2 Medical
  • EN 61000-4-2/3/5 Immunity
  • EN 50121-1 Railway EMC
  • EN 50121-4 Railway Immunity
  • IEC 61373 Railway Shock & Vibration
  • EN 62311 Human Safety/RF Exposure
  • WEEE & RoHS
  • ISTA 2A Transportation
SOFTWARE AND SERVICES
Location Based Services
  • SPoT
Network Analytics
  • RUCKUS Analytics
  • SmartCell Insight (SCI)
Security and Policy
  • Cloudpath
ORDERING INFORMATION
901-H550-XX00
  • Dual band 802.11ax Wi-Fi 6 Wall plate 2x2:2 AP with 802.11af PoE out port
901-H550-XX02
  • Dual band 802.11ax Wi-Fi 6 Wall plate 2x2:2 AP with 48v passive PoE out port

See RUCKUS price list for country-specific ordering information.

Warranty: Sold with a limited lifetime warranty.

For details see: http://support.ruckuswireless.com/warranty.

OPTIONAL ACCESSORIES
902-0180-XXYY
  • PoE injector (60W) (Sold in quantities of 1, 10)
902-2170-XXYY
  • Power Supply (50W) (Sold in quantities of 1 or 10)
902-0136-0000
  • Optional Surface-mount bracket
