  3. Eaton 5SC rack/tower line-interactive UPS 3000VA

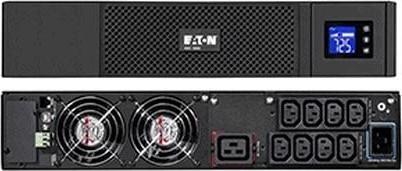

Eaton 5SC rack/tower line-interactive UPS 3000VA

1 312.85 € 1312.8500000000001 EUR

1 284.71 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

PRODUCT NAME
Eaton 5SC UPS
CATALOG NUMBER
5SC3000IRT
PRODUCT LENGTH/DEPTH
441 mm
PRODUCT HEIGHT
86.2 mm
PRODUCT WIDTH
647 mm
PRODUCT WEIGHT
35.3 kg
WARRANTY
2 year
COMPLIANCES
CE Marked
TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UPC
743172088352

PRODUCT SPECIFICATIONS

SECONDARY FREQUENCY - MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
WATTAGE
2700 W
OUTPUT POWER FACTOR
0.9
FORM FACTOR
Rack/tower
ENCLOSURE
Black
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C20
INPUT VOLTAGE - MIN
184 V
OUTPUT VOLTAGE - MAX
240 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
EFFICIENCY
97
SPECIAL FEATURES
  • Energy efficient, reduce energy and cooling costs
  • Provides more real power (watts) to protect more equipment with a 0.9 power factor
  • LCD display for real-time status and measurements
  • Versatile product for rack or tower installation
  • 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
  • Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
  • Fully integrates with Eaton Intelligent Power Manager software
  • 1 USB port + 1 serial port
  • Advanced Battery Management (ABM) technology to increase battery lifetime
  • Hot swappable batteries
  • Remote ON/OFF and remote Power OFF connectors
  • Cable locking system
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE - MIN
220 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
BTU RATING
Online: 277
RUNTIME AT HALF LOAD
10 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
INPUT VOLTAGE - MAX
276 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
NUMBER OF OUTPUTS C19
1
VA RATING
3000 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13, (1) C19
PHASE (INPUT)
1
PACKAGE CONTENTS
  • Input cable
  • Rack-mounting kit
  • Cable locking system
  • USB cable
  • Serial cable
  • (2) IEC-IEC cables
  • Quickstart guide
  • Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LCD Display
BATTERY QUANTITY
6
RACK SIZE
2U
VOLTAGE
230V
INPUT CORD LENGTH
1.8m
TEMPERATURE RANGE
0-90% non-condensing
ETHERNET INTERFACE
No
COMMUNICATION
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Dry contacts (2 outputs, optocoupler, RJ)
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
2 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY - MIN
45 Hz
BATTERY RATING
12 V / 9 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
184-276 V
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY - MAX
65 Hz
ALTITUDE
3000 m
