1. Tooted
  2. Line-interactive UPSid
  3. Eaton 5PX 3000i RT3U G2

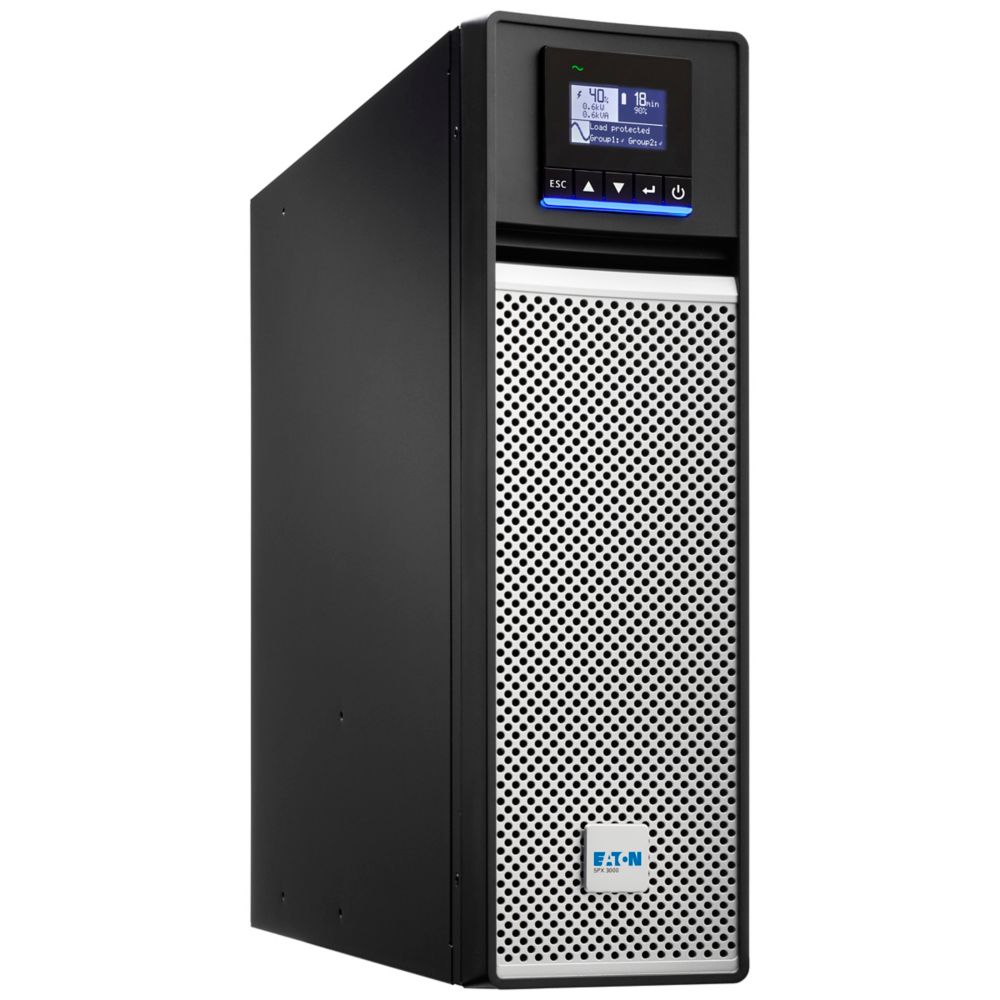

Eaton 5PX 3000i RT3U G2

1 824.50 € 1824.5 EUR

1 950.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://www.eaton.com/gb/en-gb/skuPage.5PX3000IRT3UG2.html

General specifications

Product Name
Eaton 5PX Gen2 UPS
Catalog Number
5PX3000IRT3UG2
Model Code
Eaton 5PX 3000i RT3U G2
UPC
743172104892
Product Length/Depth
483 mm
Product Height
129 mm
Product Width
438 mm
Product Weight
31.1 kg
Compliances
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
RoHS Compliant
REACH
UL 1778
CSA 22.2
Certifications
CE
cTUVus
EAC
Cm
UKCA
Ukr
KCC
ENERGY STAR certified

Battery

Battery type
Lead-acid maintenance-free (replaceable)
Runtime graph
Battery replacement
User replaceable
Battery quantity
6
Battery management
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Battery rating
12 V / 9 Ah
Extended battery capability
Yes

Electrical output

Receptacle
(8) C13, (2) C19
Voltage
230V
Wattage
3000 W
Output power factor
1
Output voltage range
230 V (+6%/-10%)
Output waveform
Sine wave
Output nominal voltage
230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max
0
Feed type
1
Topology
Line-interactive
VA rating
3000 VA

Electrical input

Input connection
C20
Input nominal voltage
230V default (200/208/220/230/240V)
Nominal frequency
50-60 Hz
Input cord length
1.8m
Input voltage range
160-294 V (adjustable to 150 V-294 V)
Input frequency range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

Communications

Includes network card
No
Communication
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Mini-terminal block for output relay
  • Dry contacts (3 outputs, 1 input, optocoupler, DB9)
User interface
Multilingual graphical LCD display
Potential free switch contact
Yes
Expansion slots
One slot for optional communication card
Software compatibility
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface
Other

Environmental

Altitude
3000 m
Noise level
<40 dB at 1 meter
Temperature range
0° to 40°C, batteries recommended max. 25°C
Relative humidity
0-90% non-condensing

Additional specifications

Construction type
482.6 mm device
Package contents
  • Input cable
  • Rack-mounting kit
  • (2) Supports for tower mounting
  • Cable locking system
  • USB cable
  • Serial cable
  • (2) IEC-IEC cables
  • Quickstart guide
  • Safety instructions
Phase (output)
1
Auto shutdown function
Yes
Color
Black/silver
Efficiency
98
Rack mounting kit
Yes
Phase (input)
1
