  2. Eaton 5PX line-interactive UPS, 1500VA/1350W, rackmount 2U

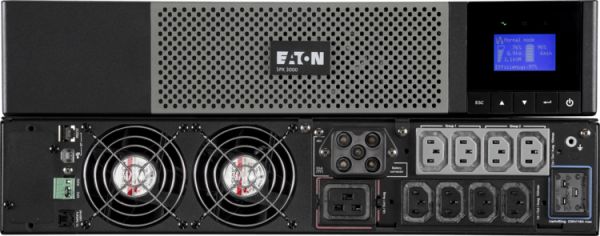

Eaton 5PX line-interactive UPS, 1500VA/1350W, rackmount 2U

1 001.48 € 1001.48 EUR

988.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

PRODUCT NAME
Eaton 5PX UPS
CATALOG NUMBER
5PX1500IRTN
PRODUCT LENGTH/DEPTH
441 mm
PRODUCT HEIGHT
86.2 mm
PRODUCT WIDTH
522 mm
PRODUCT WEIGHT
26.6 kg
WARRANTY
3 year on electronics, 3 year on batteries with registration
COMPLIANCES
CE Marked
TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UPC
743172035936
MODEL CODE
Eaton 5PX 1500i RT2U Netpack

PRODUCT SPECIFICATIONS

SECONDARY FREQUENCY - MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
1350 W
OUTPUT POWER FACTOR
0.9
FORM FACTOR
Rack/tower
ENCLOSURE
Black/silver
INCLUDES NETWORK CARD
Yes
INPUT CONNECTION
C14
INPUT VOLTAGE - MIN
150 V
OUTPUT VOLTAGE - MAX
240 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
EFFICIENCY
97
SPECIAL FEATURES
  • Automatic Voltage Regulation (AVR)
  • Energy efficient, reduce energy and cooling costs
  • Delivers clean sinewave output
  • Provides more real power (watts) to protect more equipment with a 0.9 power factor
  • LCD display for real-time status and measurements
  • Network card and rackmounting kit delivered as standard
  • Long backup time with up to 4 optional EBM
  • Meter energy consumption (down to the managed outlet groups)
  • Versatile product for rack or tower installation
  • Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
  • Fully integrates with Eaton Intelligent Power Manager software
  • 1 USB port + 1 serial port
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE - MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
BTU RATING
Online: 140
RUNTIME AT HALF LOAD
10 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
INPUT VOLTAGE - MAX
294 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
INTEGRATED FUNCTIONALITY
Network Mangement
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
VA RATING
1500 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
  • Network Management Card
  • Rack-mounting kit
  • (2) Supports for tower mounting
  • Cable locking system
  • USB cable
  • Serial cable
  • (2) IEC-IEC cables
  • Quickstart guide
  • Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
4
RACK SIZE
2U
VOLTAGE
230V
TEMPERATURE RANGE
0-90% non-condensing
ETHERNET INTERFACE
Yes
PROTOCOL
SNMP
COMMUNICATION
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Dry contacts (2 outputs, optocoupler, RJ)
  • Network card
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
3 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY - MIN
47 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot, network card included
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY - MAX
70 Hz
ALTITUDE
3000 m
