  2. Eaton 5PX 1500i RT2U G2 1500W

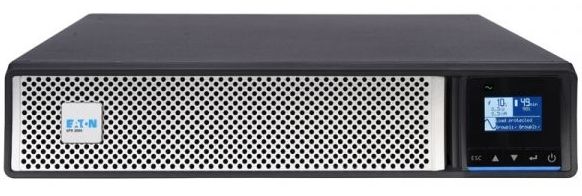

Eaton 5PX 1500i RT2U G2 1500W

1 091.19 € 1091.19 EUR

1 049.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

PRODUCT NAME
Eaton 5PX Gen2 UPS
CATALOG NUMBER
5PX1500IRT2UG2
PRODUCT LENGTH/DEPTH
448 mm
PRODUCT HEIGHT
85.5 mm
PRODUCT WIDTH
438 mm
PRODUCT WEIGHT
22.4 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
RoHS Compliant
REACH
UL 1778
CSA 22.2
CERTIFICATIONS
CE
cTUVus
EAC
Cm
UKCA
Ukr
KCC
ENERGY STAR certified
UPC
743172104861
MODEL CODE
Eaton 5PX 1500i RT2U G2

PRODUCT SPECIFICATIONS

SECONDARY FREQUENCY - MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
1500 W
OUTPUT POWER FACTOR
1
FORM FACTOR
Rack/tower
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
0
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE - MIN
150 V
OUTPUT VOLTAGE - MAX
240 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
EFFICIENCY
98
NUMBER OF OUTPUTS HARDWIRED
0
NUMBER OF OUTPUT CONNECTIONS FRENCH STANDARD (TYPE E)
0
SPECIAL FEATURES
  • Automatic Voltage Regulation (AVR)
  • Energy efficient, reduce energy and cooling costs
  • Delivers clean sinewave output
  • Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)
  • LCD display for real-time status and measurements
  • Long backup time with up to 4 optional EBM
  • Meter energy consumption (down to the managed outlet groups)
  • Versatile product for rack or tower installation
  • 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
  • Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
  • 1 USB port + 1 serial port
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE - MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
EFFICIENCY (ECO-MODE)
0
RUNTIME AT HALF LOAD
14 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
INPUT VOLTAGE - MAX
294 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
NUMBER OF OUTPUTS C19
0
VA RATING
1500 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
  • Rack-mounting kit
  • (2) Supports for tower mounting
  • Cable locking system
  • USB cable
  • Serial cable
  • (2) IEC-IEC cables
  • Quickstart guide
  • Safety instructions
NOISE LEVEL
<40 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
4
RACK SIZE
2U
VOLTAGE
230V
TEMPERATURE RANGE
0° to 40°C, batteries recommended max. 25°C
COMMUNICATION
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Mini-terminal block for output relay
  • Dry contacts (3 outputs, 1 input, optocoupler, DB9)
RELATIVE HUMIDITY
0-90% non-condensing
RACK MOUNTING KIT
Yes
NUM OF OUTPUTS PC (SCHUKO)
0
OUTPUT FREQUENCY
50/60 Hz
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY - MIN
47 Hz
BATTERY RATING
12 V / 9 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
EXPANSION SLOTS
One slot for optional communication card
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
NOMINAL FREQUENCY
50-60 Hz
PRIMARY FREQUENCY - MAX
70 Hz
ALTITUDE
3000 m
