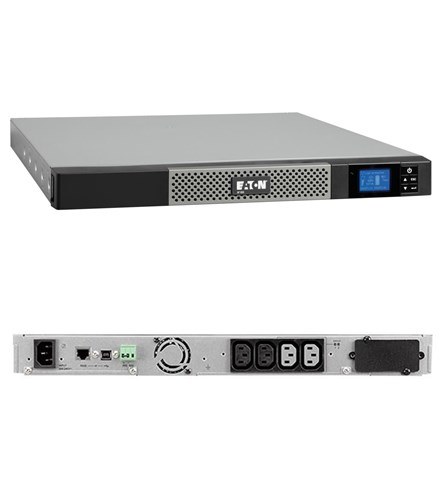

Eaton 5P 650i 650VA/420W line-interactive UPS rackmount 1U
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
PRODUCT NAME
Eaton 5P UPS
CATALOG NUMBER
5P650IR
PRODUCT LENGTH/DEPTH
364 mm
PRODUCT HEIGHT
43.2 mm
PRODUCT WIDTH
438 mm
PRODUCT WEIGHT
8.6 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
UPC
743172042903
BATTERY
RUNTIME GRAPH
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
BATTERY REPLACEMENT
User replaceable
BATTERY QUANTITY
1
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
BATTERY RATING
12 V / 9 Ah
EXTENDED BATTERY CAPABILITY
No
ELECTRICAL OUTPUT
VOLTAGE
230V
RECEPTACLE
(4) C13
WATTAGE
420 W
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
OUTPUT FREQUENCY
50/60 Hz
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
TOPOLOGY
Line-interactive
ELECTRICAL INPUT
INPUT CONNECTION
C14
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
NOMINAL FREQUENCY
50-60 Hz
INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
COMMUNICATIONS
COMMUNICATION
- USB port (HID compliant)
- Serial port (RS232)
- Mini-terminal block for remote On/Off and Remote Power Off
- Dry contacts (2 outputs, optocoupler, RJ)
ETHERNET INTERFACE
No
POTENTIAL FREE SWITCH CONTACT
Yes
EXPANSION SLOTS
One slot for optional communication card
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE
Other
ENVIRONMENTAL
ALTITUDE
2000 m
NOISE LEVEL
<40 dB at 1 meter
TEMPERATURE RANGE
0-90% non-condensing
BTU RATING
Online: 85
RELATIVE HUMIDITY
0-90% non-condensing
ADDITIONAL SPECIFICATIONS
FORM FACTOR
Rack
CONSTRUCTION TYPE
482.6 mm (19 inch) device
ENCLOSURE
Black/silver
PACKAGE CONTENTS
- Rack-mounting kit
- Cable locking system
- USB cable
- Serial cable
- (2) IEC-IEC cables
- Quickstart guide
- Safety instructions
PHASE (OUTPUT)
1
AUTO SHUTDOWN FUNCTION
Yes
RACK SIZE
1U
COLOR
Black/silver
RACK MOUNTING KIT
Yes
EFFICIENCY
96
PHASE (INPUT)
1
