| Color: | White |
| Output voltage: | 180 ~ 260VAC |
| Material: | Aluminum |
| Output frequency: | 50Hz |
| Dimensions (D/L x W x H): | 258 x 190 x 85 mm |
| Display: | LCD |
| Nominal voltage: | 230V (AC) |
| Cooling: | Passive |
| Included in the set: | 1 x Solar inverter 1 x Set of connectors 1 x Device user manual 1 x Smart SWHS application installation manual 1 x Assembly protocol |
| Rated current: | 20A (AC) |
| Security: | Short circuit protection Against overheating Against overload Against overcharging |
| Depth / Length of the package [mm]: | 305 |
| Input voltage range (PV): | 110 ~ 300VDC |

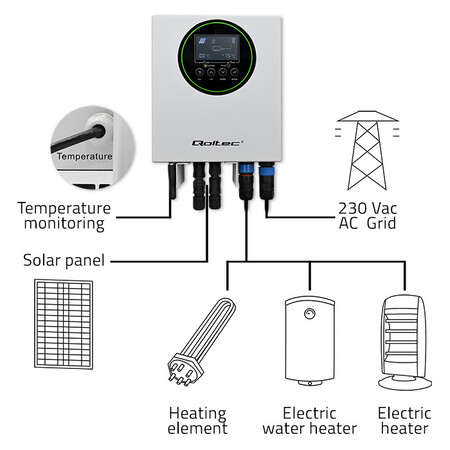

| Application: | Electric boilers Electric heaters Radiators Electric mats Underfloor heating |
| Package width [mm]: | 244 |
| Maximum panel power (PV): | 3000W |
| Additional information: | Equipped with a temperature sensor Water temperature regulation 30-80° Wi-Fi (Smart SWHS application) |
| Package height [mm]: | 162 |
| Maximum load: | ≤ 230V/4000W |
| Degree of protection: | IP65 |
| Net weight [kg]: | 2.70 |
| MPPT operating voltage range: | 90 ~ 290VDC |
| Operating temperature: | -20˚C ~ +55˚C |
| Gross weight [kg]: | 3.10 |
| AC heating rated power: | 4000W |
| Storage temperature: | -20˚C to +55˚C |
| Certificate: | CE |
| MPPT efficiency: | >99% |
