| 1 | Efficiency | 94% |
| 2 | Depth / Length of the package [mm] | 402 |
| 3 | Package width [mm] | 368 |
| 4 | Package height [mm] | 174 |

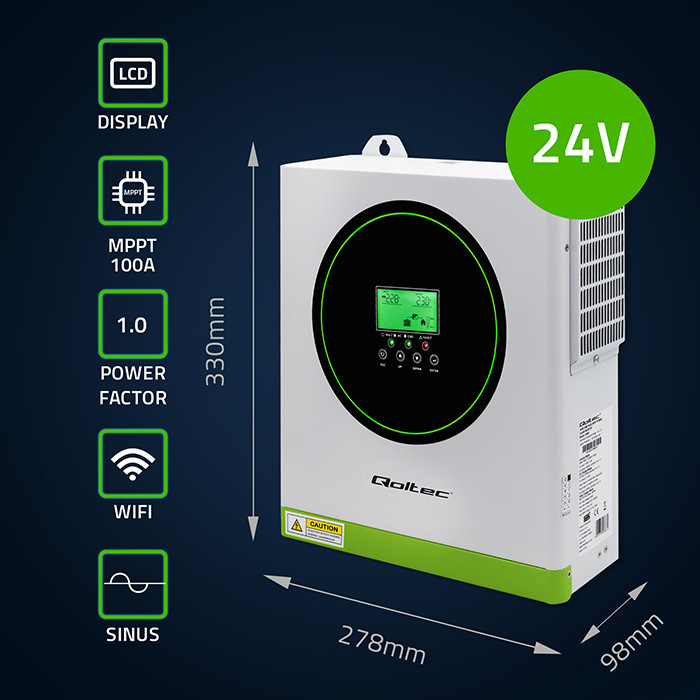

| 5 | Dimensions (D/L x W x H) | 330 x 278 x 98 mm |
| 6 | Net weight [kg] | 4.35 |
| 7 | Guarantee | 24 months |
| 8 | Battery voltage | 24V |
| 9 | Charging current (AC) | 60A |
| 10 | Certificate | CE |
| 11 | Charging type | MPPT |
| 12 | Variable charging voltage | 27VDC |
| 13 | Maximum charging current | 100A |
| 14 | MPPT operating voltage range | 45 ~ 500VDC |
| 15 | Maximum power of the photovoltaic panel | 4000W |
| 16 | Maximum open circuit voltage of a photovoltaic panel | 500VDC |
| 17 | Peak power | 7000VA |
| 18 | Housing color | White, green |
| 19 | Number of phases | Single-phase |

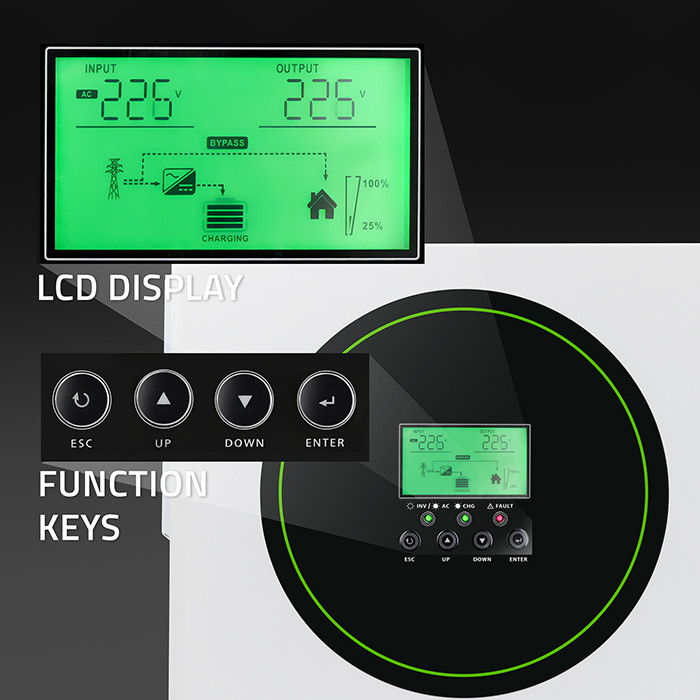

| 20 | Display | LCD |
| 21 | Battery overcharge protection | 28.2VDC |
| 22 | Maximum battery charging current from PV | 100A |
| 23 | Nominal input voltage | 220/230VAC |
| 24 | Output voltage waveform | Pure sine wave |
| 25 | Rated power | 3500VA/3500W |
| 26 | Input voltage range | 170-280VAC; 90-280VAC |
| 27 | Operating temperature | - 10°C to 55°C |
| 28 | Interface | RS232, RJ-45 |
| 29 | MPPT Starting Voltage | 45VDC |
| 30 | Battery-free operation | YEAH |
| 31 | Comments | We require the device to be installed by a qualified, licensed installer. If installed by unauthorized personnel, the warranty will automatically expire. The included warranty report is an integral part of the warranty and is required to file a complaint regarding defective goods within 24 months of purchase. |
| 32 | Working frequency | 50Hz / 60Hz (auto-detect) |
| 33 | Additional information | Supports LiFePO4, AGM, GEL, DEEP CYCLE batteries |
| 34 | Cooling | 2 x fans |
| 35 | Security | Short circuit protection Against overheating Against overload Against overcharging |
| 36 | Type | Off-grid |
| 37 | Storage temperature | - 15°C to 60°C |
| 38 | Rated power | 3500VA/3500W |
| 39 | Gross weight [kg] | 5.05 |
| 40 | Switching time | 10 ms (UPS) 20 ms (Home appliances) |
| 41 | Producer | Qoltec |
| 42 | Contents of the set | 1 x Solar inverter 1 x User manual 1 x Device assembly protocol |
