| 1 | Depth / Length of the package [mm] | 582 |
| 2 | Package width [mm] | 680 |
| 3 | Package height [mm] | 290 |
| 4 | Dimensions (D/L x W x H) | 580 x 450 x 180 mm |
| 5 | Nominal voltage | 51.2V |
| 6 | Degree of protection | IP55 |

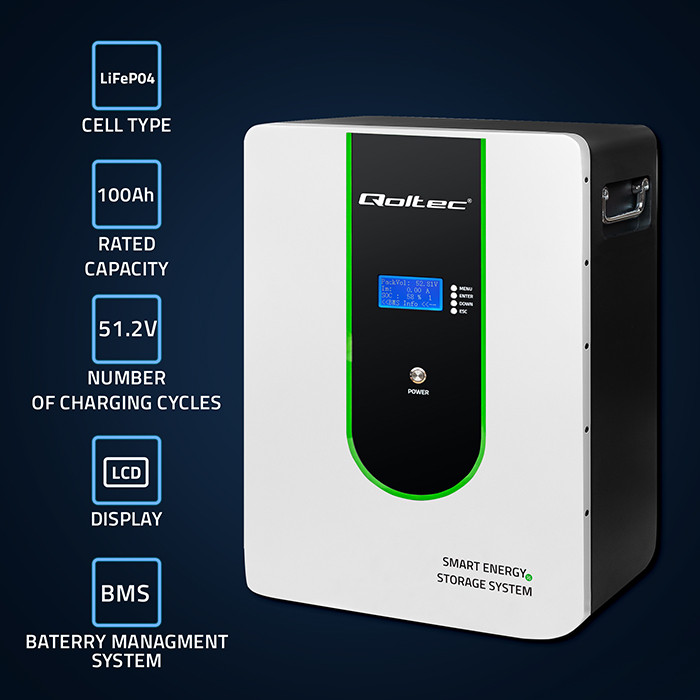

| 7 | Cell type | LiFePO4 |
| 8 | Charging voltage | max. 58.4V |
| 9 | Capacity | 100Ah |
| 10 | Net weight [kg] | 54,500 |
| 11 | Guarantee | 24 months |
| 12 | Certificate | CE |
| 13 | Variable charging voltage | 55.20V ±0.1V |
| 14 | Communication | RS485, RS232, CAN |
| 15 | Housing color | White, black |
| 16 | Maximum charging current (PV) | 50A |
| 17 | Maximum discharge current | 100A |
| 18 | Internal resistance | ≤40mΩ |
| 19 | Number of charging cycles | 6000 |
| 20 | Standard charging current | 20A |
| 21 | Standard discharge current | 20A |
| 22 | Cut-off voltage | 44.80V (0.01C) |
| 23 | Comments | We require the device to be installed by a qualified, licensed installer. Installation by unauthorized personnel will automatically void the warranty. The included warranty report is an integral part of the warranty and is required to file a complaint regarding defective goods within 24 months of purchase. |
| 24 | Additional information | BMS system support |
| 25 | Compatible with | 000-PACE RS232 V1.7-2022.10.22 000-PACE RS485 MS V1.0-2018.06.15 RS485: 000-PACE RS485 Modbus V1.1-2017.06.27 001-PYLON RS485 LV V3.5-2019.12.23 002-Growatt RS485 V2.02-2019.07.24 003-Voltronic RS485 Inverter V1.5-2022.01.18 011-VISION RS485 V1.3-2019.07.17 012-Luxpowertek RS485 Inverter V0.3-2020.07.06 036-WOW RS485 Modbus V1.3-2017.06.27 CAN: 001-PYLON CAN Inverter EMS 001-PYLON CAN IV V2.0.6-2022.05.10 002-Growatt CAN LV V1.05-2019.08.28 002-Growatt CAN LV V1.09-2020.10.22 005-SofarSolar CAN inverter V5 007-GoodWe CAN Inverter LVV17-2020.02.28 010-Victron CAN 2021.01.07 012-Luxpowertek CAN V1.0-2020.02.11 013-Sorotec CAN Inverter V1.0 014-GINLONG CAN LV V1.0-2019.12.28 015-Schneider CAN V2.0 017-SMA CAN V2.0 028-Schergy CAN V1.1-2022.05.10 030-MUST CAN PV1800F 030-MUST CAN V2.0.2-2021.06.02 031-MEGAREVO CAN Inverter LV V1.1 033-TBB CAN V1.05-2021.04.20 035-STUDER CAN V1.02-2018.06.14 |
| 26 | Security | UVP - protects against too low output voltage, SCP - is short circuit protection, OVP - is protection against too high output voltage, OCP - is protection against too high current on the line, OTP - is protection against overheating. |

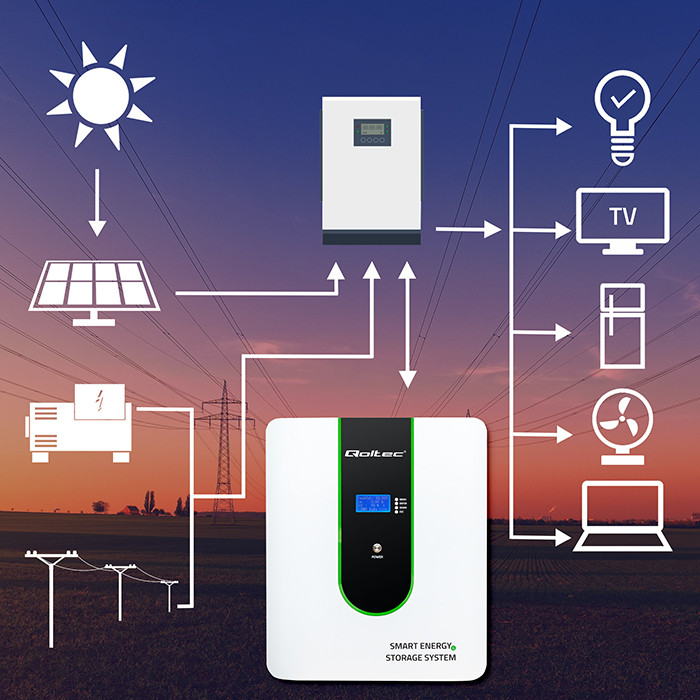

| 27 | Application | Storage of excess energy generated by photovoltaic installations Emergency power supply systems |
| 28 | Gross weight [kg] | 56,000 |
| 29 | Producer | Qoltec |

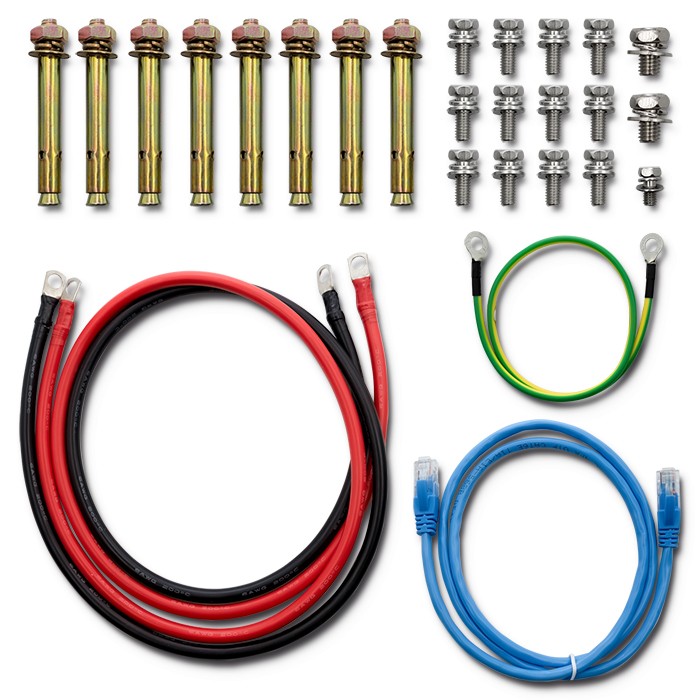

| 30 | Contents of the set | 1 x LiFePO4 energy storage 1 x Mounting accessories 1 x Mounting protocol 1 x User manual |
| 31 | Number of batteries | 16 |
| 32 | Relative humidity | ≤95% relative humidity |
| 33 | Operating temperature range | Charging : 0˚C ~ +45˚C Discharging : -25˚C ~ +55˚C |
| 34 | Storage temperature range | Less than 1 month : -10˚C ~ +45˚C Less than 3 months : -10˚C ~ +35˚C More than 3 months : 0˚C ~ +30˚C |
