| 1 | Depth / Length of the package [mm] | 490 |
| 2 | Package width [mm] | 600 |
| 3 | Package height [mm] | 240 |

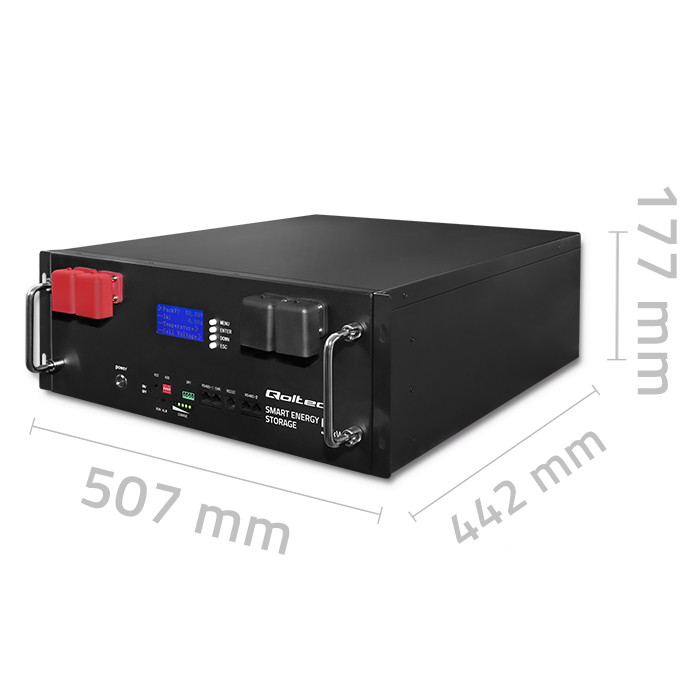

| 4 | Dimensions (D/L x W x H) | 507 x 442 x 177 mm |
| 5 | Nominal voltage | 51.2V |
| 6 | Degree of protection | IP55 |
| 7 | Cell type | LiFePO4 |
| 8 | Charging voltage | max. 58.4V |
| 9 | Capacity | 100Ah |
| 10 | Net weight [kg] | 51,500 |
| 11 | Guarantee | 24 months |
| 12 | Certificate | CE |
| 13 | Variable charging voltage | 55.20V ±0.1V |

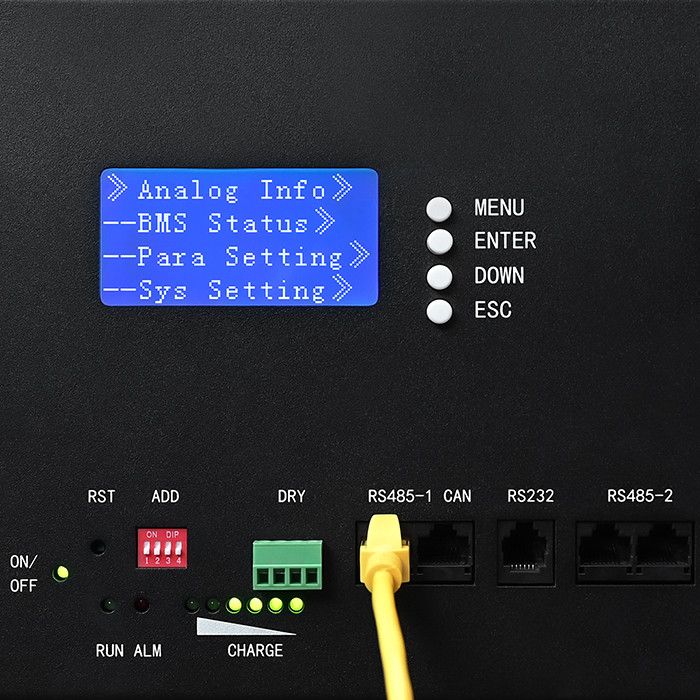

| 14 | Communication | RS485-1 CAN, RS485-2, RS232 |
| 15 | Housing color | Black |
| 16 | Maximum charging current (PV) | 50A |
| 17 | Maximum discharge current | 100A |
| 18 | Internal resistance | ≤40mΩ |
| 19 | Number of charging cycles | ≥3000 (100% DOD) |
| 20 | Standard charging current | 50A |
| 21 | Standard discharge current | 50A |
| 22 | Cut-off voltage | 44.80V (0.01C) |
| 23 | Comments | We require the device to be installed by a qualified, licensed installer. Installation by unauthorized personnel will automatically void the warranty. The included warranty report is an integral part of the warranty and is required to file a complaint regarding defective goods within 24 months of purchase. |
| 24 | Additional information | BMS system support |
| 25 | Security | UVP - protects against too low output voltage, SCP - is short circuit protection, OVP - is protection against too high output voltage, OCP - is protection against too high current on the line, OTP - is protection against overheating. |

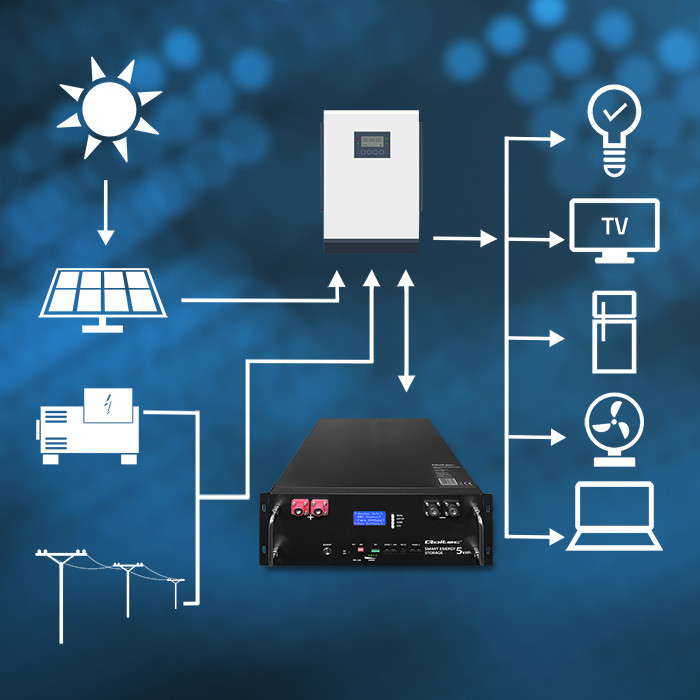

| 26 | Application | Storage of excess energy generated by photovoltaic installations Emergency power supply systems |
| 27 | Gross weight [kg] | 53,000 |
| 28 | Producer | Qoltec |

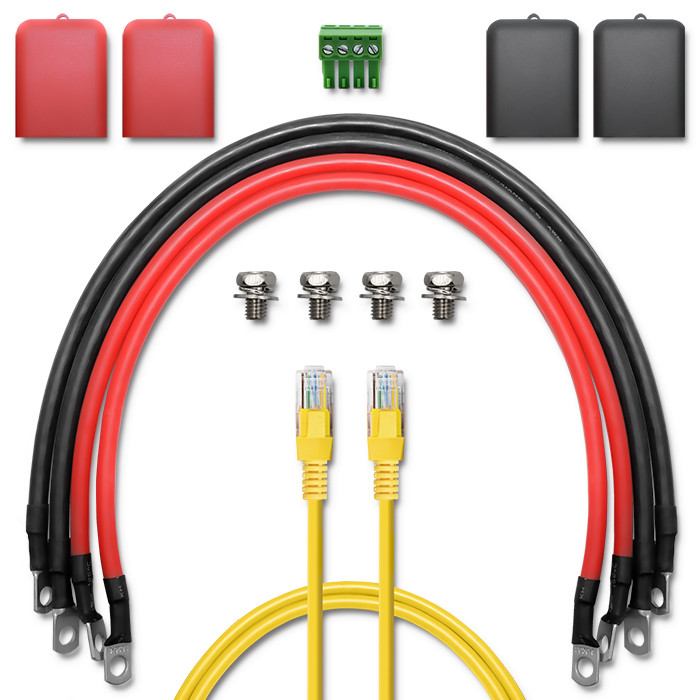

| 29 | Contents of the set | 1 x LiFePO4 energy storage 1 x Mounting accessories 1 x Mounting protocol 1 x User manual |
| 30 | Number of batteries | 16 |
| 31 | Relative humidity | ≤95% |
| 32 | Operating temperature range | Charging : 0˚C ~ +50˚C Discharging : -20˚C ~ +60˚C |
