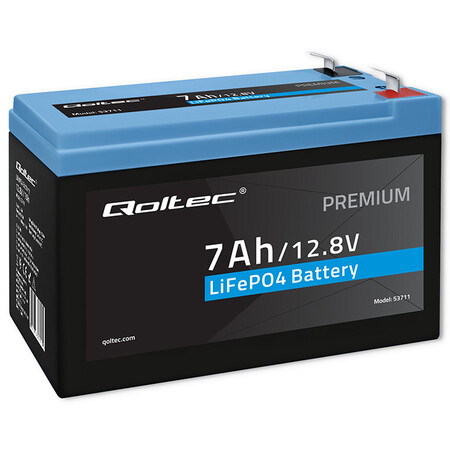

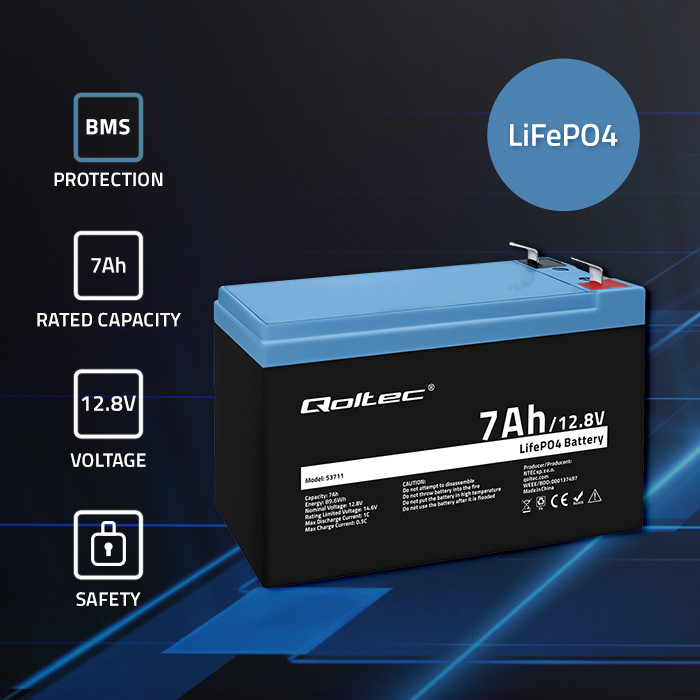

Qoltec LiFePO4 battery, 12.8V, 7Ah, 89.6Wh, BMS
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Application: | Photovoltaics Off-grid systems Energy storage Emergency power Electric cars Campers Yachts Wheelchairs Power tools Alarm systems |
| Operating temperature range: | Discharging : -15℃～60℃ Charging : 0℃～60℃ Storage : -15℃～50℃ |
| Storage temperature range: | -15℃~50℃ Batteries can be stored for more than 6 months at 25℃. |
| Relative storage humidity: | 45～85%RH |

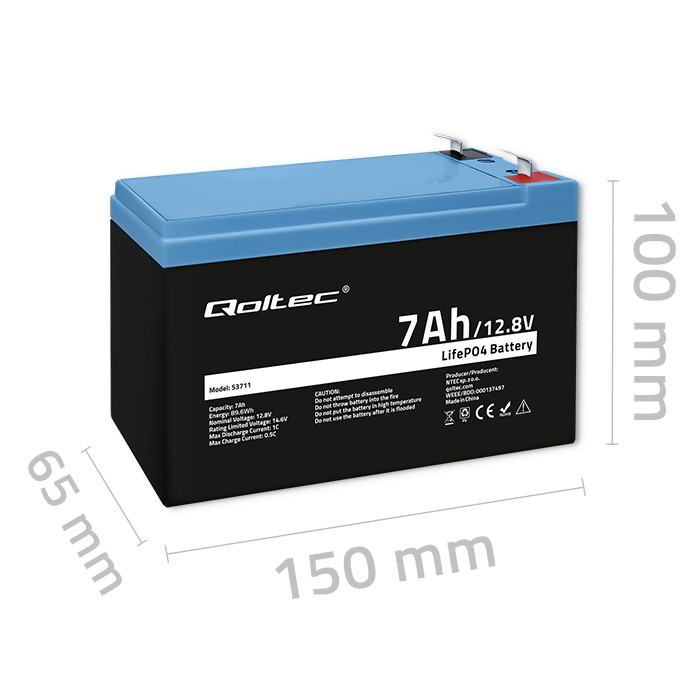

| Dimensions (D/L x W x H): | 65 x 150 x 100 mm |
| Depth / Length of the package [mm]: | 65 |
| Package width [mm]: | 150 |
| Package height [mm]: | 100 |
| Net weight [kg]: | 0.792 |
| Gross weight [kg]: | 0.793 |
| Certificate: | CE |
| Guarantee: | 24 months |
| Degree of protection: | IP55 |
| Internal resistance: | 38mΩ |
| Additional information: | The 404FTC01 series has an incorrect print on the battery, the correct capacity is 89.6Wh |
| Battery overcharge protection: | 3.65V |
| Security: | Battery equipped with BMS |
| Polarization: | L+ |
| Battery type: | LiFePO4 |
| Power: | 89.6Wh |
| Capacity: | 7Ah |
| Nominal voltage: | 12.8V |
| Limited rated voltage: | 10.4V-14.6V |
| Charging type: | CC/CV |
| Battery charging voltage: | 14.4±0.2V |
| Number of charging cycles: | They retain over 80% of their capacity even after 3,000 charging cycles. |
| Connector type: | T1/T2 |
| Maximum charging current: | 4.5A |
| Maximum discharge current: | 9A (1C) |
| Standard charging current: | 1.8A (0.2C) |
| Standard discharge current: | 4.5A (0.2C) |
| Cut-off voltage: | 10.4V |
| Color: | Black, blue |
