Qoltec LiFePO4 battery, 12.8V, 200Ah, 2560Wh, BMS
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| 1 | Depth / Length of the package [mm] | 220 |
| 2 | Package width [mm] | 550 |
| 3 | Package height [mm] | 305 |

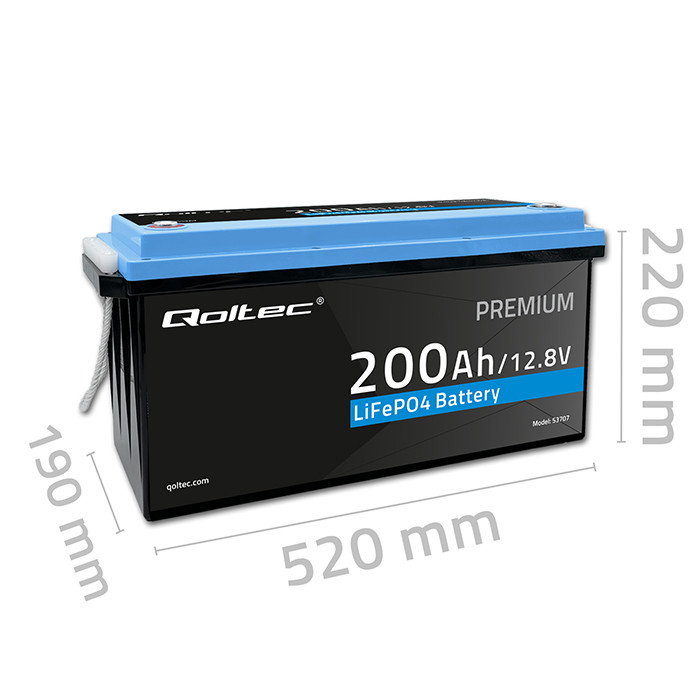

| 4 | Dimensions (D/L x W x H) | 190 x 520 x 220mm |
| 5 | Color | Black, blue |
| 6 | Nominal voltage | 12.8V |
| 7 | Degree of protection | IP65 |
| 8 | Capacity | 200Ah |
| 9 | Net weight [kg] | 18.5 |
| 10 | Battery type | LiFePO4 |
| 11 | Guarantee | 24 months |
| 12 | Certificate | CE |
| 13 | Charging type | CV |
| 14 | Maximum charging current | 100A |
| 15 | Battery charging voltage | 14.4±0.2V |
| 16 | Battery overcharge protection | 3.65V |
| 17 | Maximum discharge current | 200A |
| 18 | Number of charging cycles | They retain over 80% of their capacity even after 3,000 charging cycles. |
| 19 | Internal resistance | 6mΩ |
| 20 | Standard charging current | 20A |
| 21 | Standard discharge current | 50A |
| 22 | Cut-off voltage | 10.4V |
| 23 | Limited rated voltage | 10.4V-14.6V |
| 24 | Power | 2560Wh |
| 25 | Additional information | The maximum number of parallel connections is 4. The maximum number of series connections is 4. When connecting batteries in series, ensure that the voltage difference between the batteries does not exceed 1V. We do not recommend combining batteries from different batches or brands, as differences in BMS systems and cells may affect their performance. |
| 26 | Security | Battery equipped with BMS |
| 27 | Application | Photovoltaics Off-grid systems Energy storage Emergency power Electric cars Campers Yachts Wheelchairs Power tools Emergency systems |
| 28 | Storage relative humidity | 45～85%RH |
| 29 | Gross weight [kg] | 19.5 |
| 30 | Producer | Qoltec |
| 31 | Connector type | M8 |
| 32 | Operating temperature range | Discharging : -15℃～60℃ Charging : 0℃～60℃ Storage : -15℃～50℃ |
