Tehnilised andmed
TYPE VRLA
TECHNOLOGY AGM
RATED CAPACITY 1Ah
VOLTAGE 12V
MAXIMUM CHARGING CURRENT 5.1A
MAX. DISCHARGE CURRENT 255A (5 sec)
FLOAT CHARGE 13.5 - 13.8 V
CYCLIC CHARGE 14.4 - 15.0 V

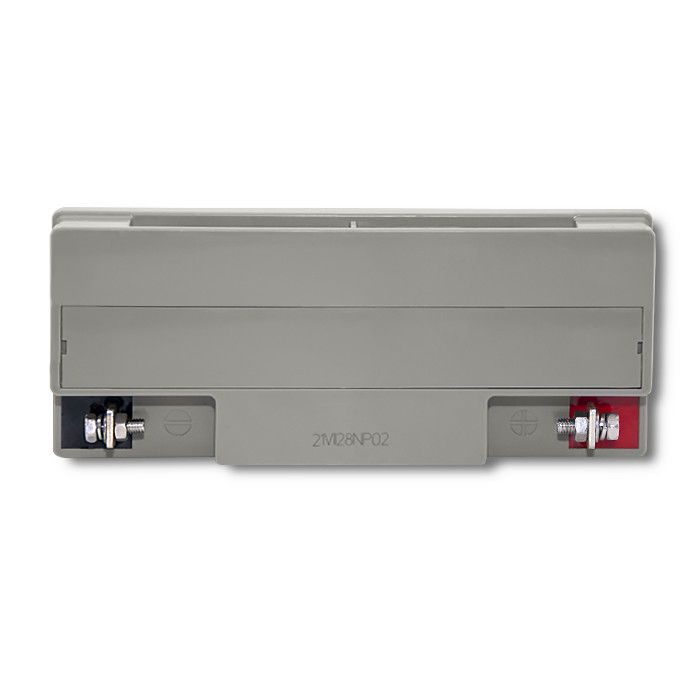

CONNECTOR T3 (M5)
INTERNAL RESISTANCE 17mΩ
CAPACITY AFFECTED BY TEMPERATURE (10HR) 40°C : 102%
25°C : 100%
0°C : 85%
-15°C : 65%
SELF-DISCHARGE (25℃) Maximum reliability and very low self-discharge.
After 3 months of storage, it retains: 91%.
After 6 months of storage, it retains: 82%.
After 12 months of storage, it retains: 65%.
SERVICE LIFE 10 years (when working with an uninterruptible power supply UPS)
USAGE - Alarm systems and monitoring
- UPS
- Electronic toys
- Motorcycles, quads, scooters, etc.
- Forklifts, golf carts, wheelchairs
- Solar battery systems
- Medical equipment
- Emergency lighting
ADDITIONAL INFORMATION - wide operating temperature range,
- resistance to low temperatures,
- maintenance-free
OTHER PARAMETERS
COLOUR Grey
TEMPERATURE RANGE Discharge: -15˚C ~ +50˚C
Charge : -10˚C ~ +50˚C
Storage : -20˚C ~ +50˚C
DIMENSIONS DEVIATION +/- 2%

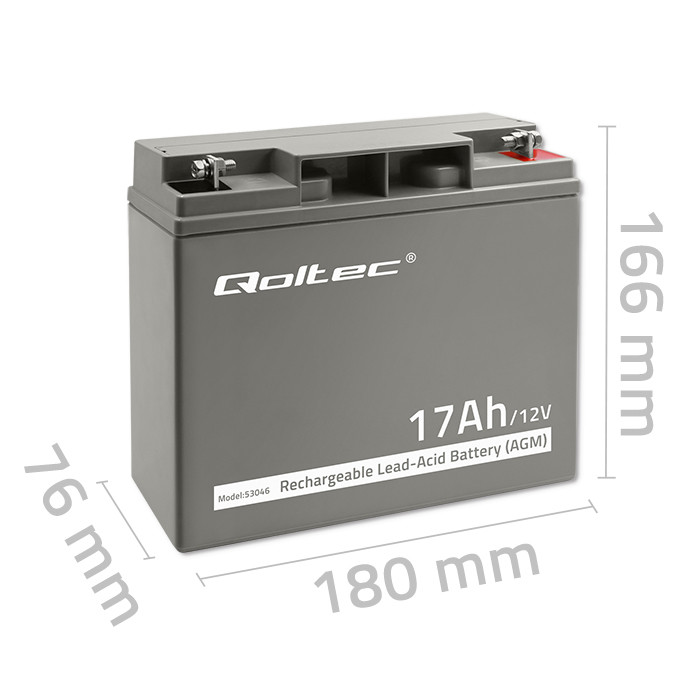

DIMENSIONS (D/L X W X H) 75 x 178 x 163 mm
PACKAGE CONTENTS AGM battery 17Ah
PACKAGE DEPTH / LENGTH [MM] 180
PACKAGE WIDTH [MM] 80
PACKAGE HEIGHT [MM] 165
WEIGHT DEVIATION +/- 10%
NET WEIGHT [KG] 4.98
GROSS WEIGHT [KG] 5.0
