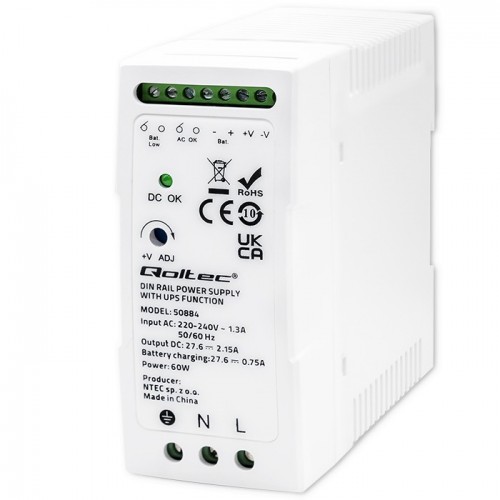

Qoltec stable DIN rail power supply with UPS function | 60W
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.qoltec.com/product/qoltec-stable-din-rail-power-supply-with-ups-function-60w
PRODUCER
Qoltec
TYPE
Impulse
USABLE POWER
60W
INPUT VOLTAGE
220 - 240V
OUTPUT VOLTAGE
27.6VDC
RANGE OF OUTPUT VOLTAGE REGULATION
24-30V
OUTPUT CURRENT
1.45A
FREQUENCY
50/60Hz
EFFICIENCY
88%
SECURITY
- Overload protection,
- Overvoltage protection,
- Low battery cut-out
- Reverse polarity battery protection (fuse)
- Overvoltage protection,
- Low battery cut-out
- Reverse polarity battery protection (fuse)
TYPE OF ASSEMBLY
TH35
ADDITIONAL INFORMATION
DC input support possible with AC/L(+), AC/N(-) connection
Conforms to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035
Complies with BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2
SAFETY STANDARDS : UL62368-1, TUV BS EN/EN62368-1
Conforms to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035
Complies with BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2
SAFETY STANDARDS : UL62368-1, TUV BS EN/EN62368-1
IP RATING
IP20
WORKING TEMPERATURE
-30˚C ~ +70˚C
STORAGE TEMPERATURE
-40℃ ~+85℃
WORKING HUMIDITY
20 ~ 90% RH (without condensation)
STORAGE HUMIDITY
10 ~ 95% without condensation
COLOUR
White
DIMENSIONS (D/L X W X H)
102 x 38 x 90 mm
PACKAGE CONTENTS
1 x DIN rail power supply
PACKAGE DEPTH / LENGTH [MM]
111
PACKAGE WIDTH [MM]
104
PACKAGE HEIGHT [MM]
45
NET WEIGHT [KG]
0.267
GROSS WEIGHT [KG]
0.280
CERTIFICATIONS
CE
