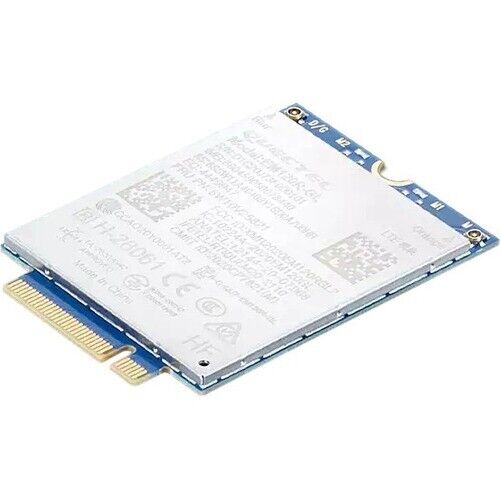

Lenovo ThinkPad WWAN LTE module Quectel SDX24 EM120R-GL CAT12 PCIE, for T14s/X13, X13 Yoga, T14/15, L14/15 Gen2

136.85 € 136.85 EUR

132.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

Overview

ThinkPad Quectel SDX24 EM120R-GL 4G LTE CAT12 PCIE WWAN module is a wireless communication module with receive diversity. It helps provide data connectivity and network with standard PCI Express M.2 interface. With downlink speed of up to 600 Mbps and uplink speed of up to 150 Mbps, the 4G CAT12 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.

Key Details

  • Size: 42*30*2.3mm
  • Weight: approx. 6.8 g
  • PCI Express M.2 Interface
  • Main and Rx-diversity/GNSS antenna connectors
  • 2 × 2 MIMO in DL direction
  • Data rate: up to 600 Mbps (Downlink)/150 Mbps (Uplink)

Tech Specs

Weight6.8g
Hardware RequirementsPCI Express M.2 Interface
BrandThinkPad
OS RequirementsWindows 10
Packed Weight0.07 kg
Other Electrical SpecificationsThe power supply range of the module is from 3.135 V to 4.4 V.
Other Operating EnvironmentSupport (U) SIM card: 1.8/3.0V Support Dual SIM Single Standby (Dual SIM = Embedded eSIM + nano SIM)
Other Physical Specificationsadopt a standard PCI Express M.2 connector
Agency ApprovalsCE, FCC, ANATEL, TELEC&JATE, RCM SDoC, KC, NCC, IC, ICASA, IFETEL
Package TypeBrown Box
Packed Dimensions (L x D x H)53 mm x 144 mm x 177 mm
Height2.3 mm
Cable Length42 mm
Depth30 mm
Warranty PeriodCustomer Replaceable Unit (CRU)
Maximum Operating Temperature75°C
Minimum Operating Temperature-25℃
Maximum Relative Humidity (%)95%
Minimum Relative Humidity (%)5%
VoltageSupply Voltage: 3.135-4.4V Typical supply voltage: 3.7V
