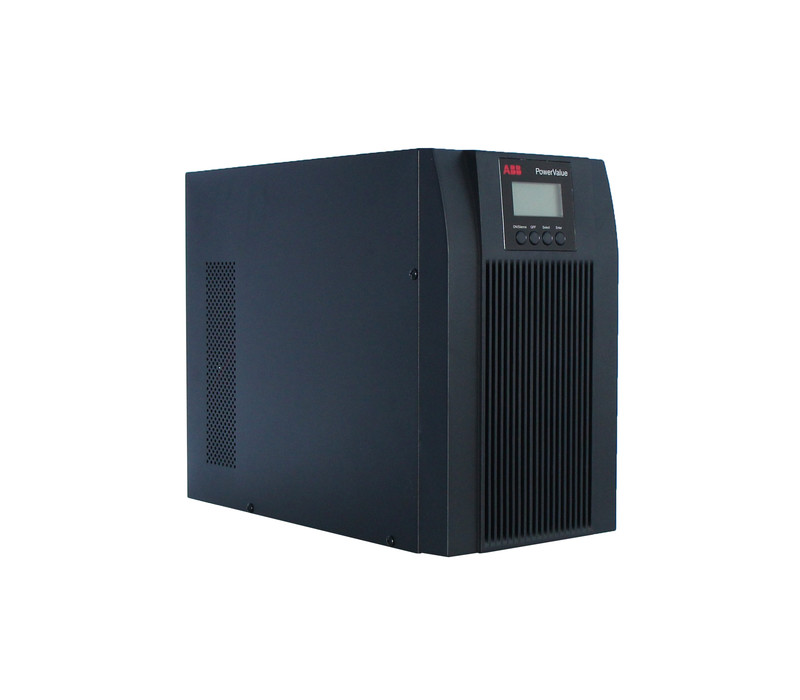

VFI, 3000VA/2700W tower, 5.5min, RS232,USB,mini COM slot

https://new.abb.com/products/4NWP100162R0001/ups-powervalue-11t-g2-3-kva-b

Technical

• Input Voltage (Uin):

  220 V
  230 V
  240 V


• Input Voltage Type:

  AC


• Rated Frequency (f):

  Primary 50 Hz
  Primary 60 Hz
  Secondary 50 Hz
  Secondary 60 Hz


• Apparent Power Output:

  3000 V·A


• Rated Output Power:

  2700 W


• Communication Interface:

  USB, RS-232


• Number of Phases:

  Primary - 1
  Secondary - 1


• Number of Outputs:

  C13 Connection 4
  C19 Connection 1


• Connection Type:

  IEC C20


• Options Provided:

  Auto shut down function
  Potential free switch contact
  Network-management


• Battery Chemical Composition:

  Lead-Acid


• Battery Type:

  Portable


• Battery Weight:

  2.5 kg


• Number of Batteries:

  4


Dimensions

• Product Net Width:

  190 mm


• Product Net Height:

  327 mm


• Product Net Depth / Length:

  399 mm


• Product Net Weight:

  22.2 kg


Container Information

• Package Level 1 Units:

  box 1 piece


• Package Level 1 Width:

  324 mm


• Package Level 1 Height:

  464 mm


• Package Level 1 Depth / Length:

  500 mm


• Package Level 1 Gross Weight:

  24.6 kg


• Package Level 1 EAN:

  7640169261923


• Country of Origin:

  China (CN)


Certificates and Declarations

• Declaration of Conformity - CE:

  4NWD004828


Popular Downloads

• Data Sheet, Technical Information:

  4NWD003883_EN


• Instructions and Manuals:

  4NWD003883_EN


• Conflict Minerals Reporting Template (CMRT):

  9AKK108467A5658
