  2. Eaton mini UPS, 36W, output nominal voltage 9V (12/15/19V), 4*barrel plug, 2.2Ah Lithium-ion

Eaton mini UPS, 36W, output nominal voltage 9V (12/15/19V), 4*barrel plug, 2.2Ah Lithium-ion

57.12 € 57.120000000000005 EUR

57.81 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

PRODUCT NAME
Eaton 3S Mini UPS
CATALOG NUMBER
3SM36
PRODUCT LENGTH/DEPTH
136 mm
PRODUCT HEIGHT
30 mm
PRODUCT WIDTH
95 mm
PRODUCT WEIGHT
0.37 kg
WARRANTY
2 year
COMPLIANCES
CE Marked
CERTIFICATIONS
CE
IEC/EN 62040-2
IEC 62477-1
IEC 62040-5-3
EAN
3553340705014
MODEL CODE
Eaton 3S Mini 36W

PRODUCT SPECIFICATIONS

WATTAGE
36W
OUTPUT POWER FACTOR
0
FORM FACTOR
Tower
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
0
INCLUDES NETWORK CARD
No
INPUT CONNECTION
Other
INPUT VOLTAGE - MIN
100 V
OUTPUT VOLTAGE - MAX
19 V
SECONDARY FREQUENCY - MIN
0 Hz
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lithium-ion
EFFICIENCY
78
NUMBER OF OUTPUTS HARDWIRED
0
NUMBER OF OUTPUT CONNECTIONS FRENCH STANDARD (TYPE E)
0
SPECIAL FEATURES
  • Attractive design and glossy finish make the 3S a perfect fit for the modern office environment
  • Compact unit fits on or under your desk

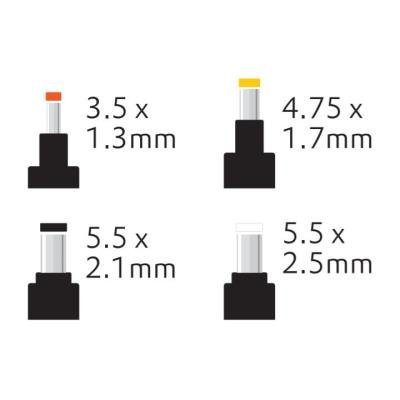

  • 4 Barrel adaptators to connect your device

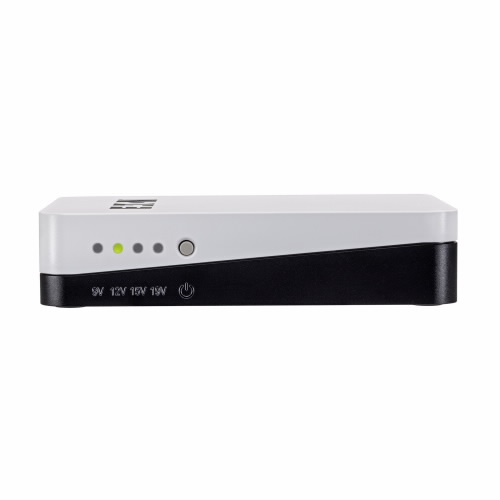

  • LED indicator providing information about output voltage or remaining battery capacity
  • 2200 mAh Battery (2 cells)
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE - MIN
12 V
COLOR
Black/White
EXTENDED BATTERY CAPABILITY
No
TOPOLOGY
Offline
SURGE PROTECTION
No
EFFICIENCY (ECO-MODE)
0
RUNTIME AT HALF LOAD
30 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
46-70 Hz
INPUT VOLTAGE - MAX
240 V
VOLTAGE TYPE
AC/DC
PHASE (OUTPUT)
0
BATTERY MANAGEMENT
Replaceable batteries
AUTO SHUTDOWN FUNCTION
No
NUMBER OF OUTPUTS C13
0
NUMBER OF OUTPUTS C19
0
OPERATING TEMPERATURE - MIN
0 °C
VA RATING
72 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(4) Barrel adaptators
PHASE (INPUT)
1
PACKAGE CONTENTS
  • UPS
  • Input cable
  • (4) Barrel adaptators
  • Quickstart guide
NOISE LEVEL
<25 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
2
OPERATING TEMPERATURE - MAX
35 °C
INPUT CORD LENGTH
1 m
ETHERNET INTERFACE
No
RELATIVE HUMIDITY
0-85% non-condensing
RACK MOUNTING KIT
No
NUM OF OUTPUTS PC (SCHUKO)
0
RUNTIME AT FULL LOAD
11 min
TYPE OF INTERFACE
None
PRIMARY FREQUENCY - MIN
46 Hz
BATTERY RATING
2200 mAh
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
9 V (12/15/19 V)
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
100-240 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY - MAX
70 Hz
ALTITUDE
2000 m
