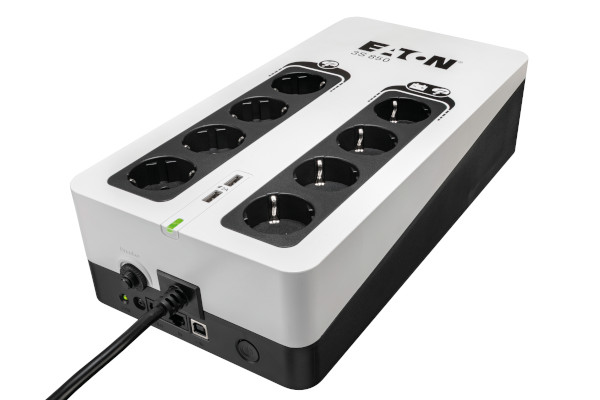

Eaton 3S Gen2 off-line UPS DIN, 850VA/510W
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
PRODUCT NAME
Eaton 3S Gen2 UPS
CATALOG NUMBER
3S850D
PRODUCT LENGTH/DEPTH
83.5 mm
PRODUCT HEIGHT
170 mm
PRODUCT WIDTH
335 mm
PRODUCT WEIGHT
4.2 kg
WARRANTY
2 year
COMPLIANCES
CE Marked
CERTIFICATIONS
EAC
IEC/EN 62040-2
CE
IEC/EN 62040-1
IEC/EN 62040-2
CE
IEC/EN 62040-1
UPC
743172101778
BATTERY
BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
View runtime graph
BATTERY REPLACEMENT
User replaceable
BATTERY QUANTITY
1
BATTERY MANAGEMENT
Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
BATTERY RATING
12 V / 9 Ah
EXTENDED BATTERY CAPABILITY
No
ELECTRICAL OUTPUT
RECEPTACLE
(4) Schuko, (4) Schuko surge only
VOLTAGE
230V
WATTAGE
510W
OUTPUT POWER FACTOR
0.6
OUTPUT VOLTAGE RANGE
184-264 V (adjustable to 161-284 V)
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
0
FEED TYPE
1
TOPOLOGY
Offline
VA RATING
850 VA
ELECTRICAL INPUT
INPUT CONNECTION
Protective contact (SCHUKO)
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
NOMINAL FREQUENCY
50/60 Hz
INPUT CORD LENGTH
1.5 m
INPUT VOLTAGE RANGE
184-264 V (adjustable to 161-284 V)
INPUT FREQUENCY RANGE
46-70 Hz
COMMUNICATIONS
INCLUDES NETWORK CARD
No
COMMUNICATION
USB port (HID compliant)
ETHERNET INTERFACE
No
USER INTERFACE
LEDs
POTENTIAL FREE SWITCH CONTACT
No
EXPANSION SLOTS
No
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
TYPE OF INTERFACE
USB
ENVIRONMENTAL
ALTITUDE
2000 m
NOISE LEVEL
<25 dB at 1 meter
RELATIVE HUMIDITY
0-85% non-condensing
ADDITIONAL SPECIFICATIONS
CONSTRUCTION TYPE
Free standing model
PACKAGE CONTENTS
- USB cable
- Quickstart guide
- Safety instructions
PHASE (OUTPUT)
1
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black/White
EFFICIENCY
98
RACK MOUNTING KIT
No
PHASE (INPUT)
1
SURGE PROTECTION
Yes
