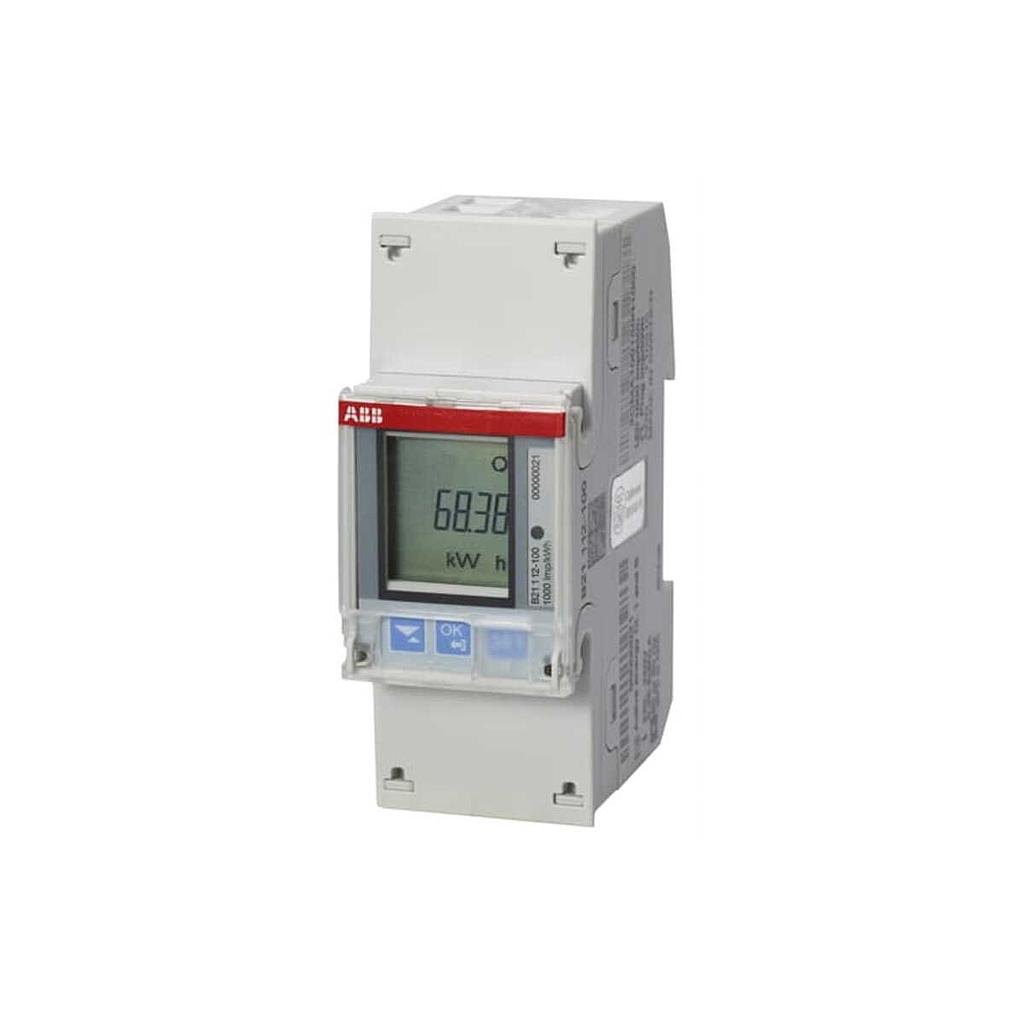

ABB Terra AC B21 112-100 energiamõõtja 'Steel', Modbus RS485, 1 faasiline, 5A

Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase direct connected for active energy. One output for pulses or alarm etc.  RS-485 communication over Modbus RTU or EQ Bus. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.

Function:

Electricity meter

Sub-Function:

Steel

Rated Voltage (Ur):

220-240 V

Voltage Range:

176…276 V

Rated Current (In):

5 A

Maximum 65 A

Current Rating:

5 A

Rated Frequency (f):

50 / 60 Hz

Power Consumption (@Pcons):

0.414 W

Communication Interface:

Modbus RS485

Accuracy:

Active Energy Class B MID (±1%)

Measuring Instrument Conformity:

Measurement Instrument Directive (MID)

Meter Tariff Rating:

One-Tariff

Pulse Output Rate:

1-999999

Number of Poles:

1P

Number of Phases:

Single-phase

Number of Counter Positions:

7

Number of Digital In/Outputs:

1 DO

Meter Type:

Direct connected

Mounting Type:

DIN-Rail

Pulse Output Type:

Electrical

Type of Indicator:

Digital

Enclosure Material:

Polycarbonate in transparent front glass. Glass reinforced

polycarbonate in bottom case and upper case. Polycarbonate

in terminal cover.

I/O Option:

1 digital output

Communication:

Modbus RTU

Connecting Capacity Main Circuit:

1 ... 25 mm²

Material Compliance

RoHS Information:

2CMC485005

RoHS Status:

Following EU Directive 2002/95/EC August 18, 2005 and amendment

RoHS Date:

2012-36

REACH Declaration:

Reach Declaration - ABB S.p.A. Vittuone

REACH Information:

True - contains substances > 0.1 mass percentage

REACH Date:

20240429

Conflict Minerals Reporting Template (CMRT):

Conflict Minerals Reporting Template

Environmental

Ambient Air Temperature:

Operation -40 ... 70 °C

Degree of Protection:

IP20

Environmental Information:

2CMC485004D0001

Dimensions

Width in Number of Modular Spacings:

2

Product Net Width:

35 mm

Product Net Height:

26.5 mm

Product Net Depth / Length:

65 mm

Product Net Weight:

150 g

Size:

97X35X65
