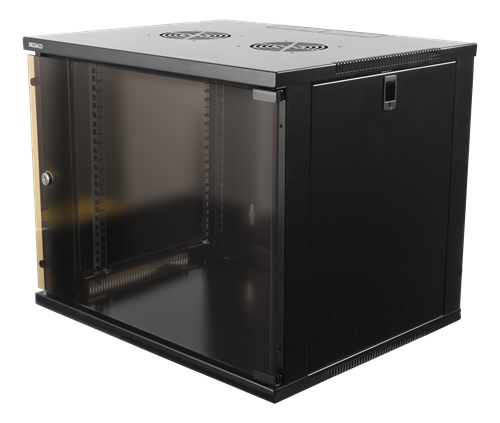

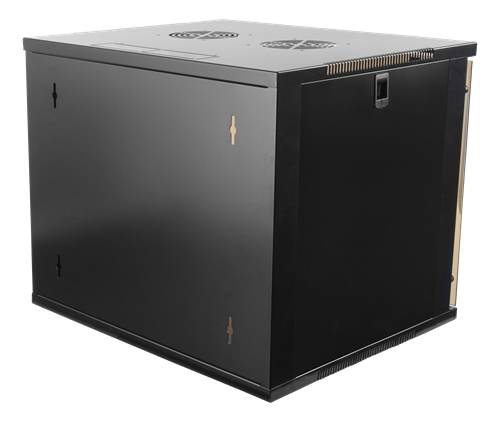

19 "cabinet, 9U, 540x450mm, standing or wall mounted, glass door, black
This cabinet offers versatile possibilities for network, electricity distribution and monitoring equipment.

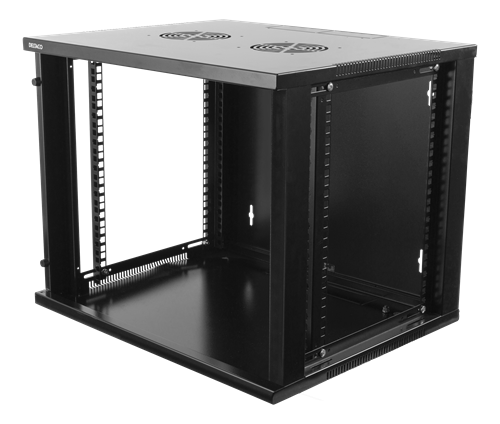

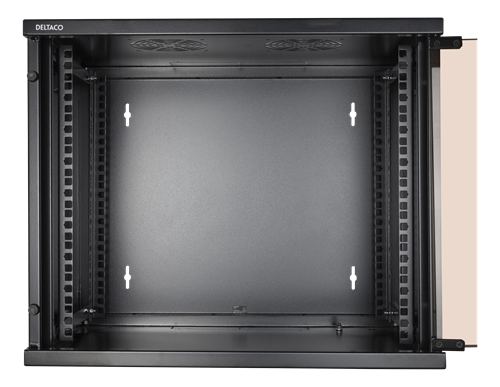

The cabinet can be mounted on a wall or on a table or shelf surface with the supplied feet. 19 "rails front and rear can be adjusted in depth and, if there is a need for cooling, the top has space for two 120mm fans. For shielded equipment there is a grounding ground in the bottom to transport disturbing signals.
The frame is assembled with powder coated SPCC steel in a reliable structure with welded joints. The front door is lockable with reversible hanging and is made of 5 mm tempered glass. Side panels are detachable and there are cable connections in both the top and bottom.
All in all, a cabinet with problem solving features that covers all needs.
• 9U with rails front and back
• Standing or wall mounted
• Reliable structure of SPCC steel
• 50 kg static load
• Complies with ANSI / EIA RS-310-D, IEC60297-2, DIN41494 Part1, DIN41494 Part7
Dimensions: (WxDxH): 540x450x450mm.

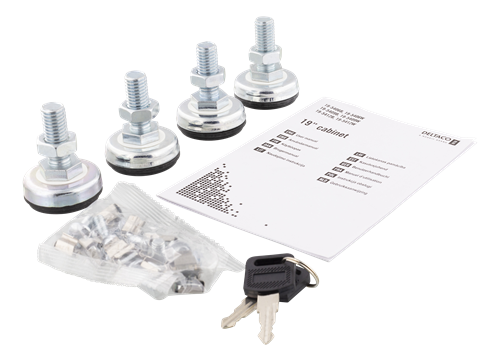

Comes with 4 x feet, 10 x basket nuts, 2 x door keys and a torx key.
