| General Features |
| Type | Line-Interactive (VI) |
| Phases (IN-OUT) | 1-1 |
| Form Factor | Rack |
| Rack Units [U] | 1U |
| Power Capacity | 750VA / 450W |
| Output Power Factor | 0.60 |
| Input |
| Input Voltage Range | 165-290 VAC |
| Frequency Range | 45Hz – 65Hz |
| Output |
| Waveform | Pure Sine Wave |
| Nominal Output Voltage | 230 VAC |
| THDv | ≤3% @ 100% linear load, ≤5% @ 100% non-linear load |
| Voltage Regulation (Battery Mode) | ±10% |
| Frequency (Battery Mode) | ±0.5Hz |

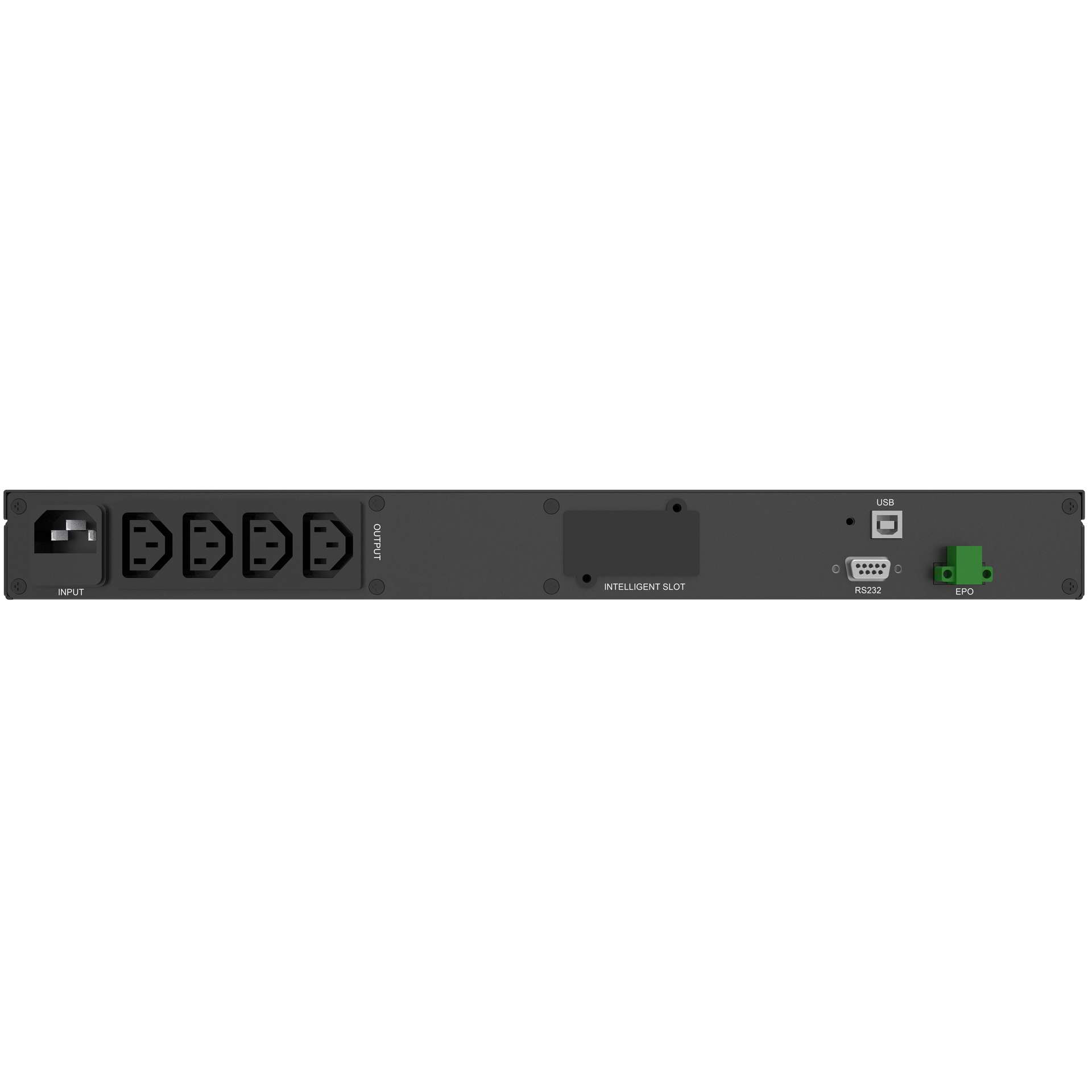

| Input & Output Connectors |
| Input Connector | C14 |
| Output Type | IEC |
| IEC C13 | 4 |
| Technical Details |
| LINE Mode Efficiency [%] (Full Load) | 95.0 |
| Battery Mode Efficiency [%] (Full Load) | 78.0 |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 4ms typical |
| Additional Features | LCD Display, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator, Low-Depth, Energy Saving Function |
| Batteries and Autonomy |
| Batteries | 2x 6.0V/9.0Ah |
| DC Voltage | 2x 6.0V |
| Recharge Time | 8h to 90% |
| Full Load Backup Time [min] | 0.4 |
| Half Load Backup Time [min] | 8.7 |
| Charger | 1A |
| Communication |
| Communication | USB Type B – for Monitoring Software, RS-232, Management Card Slot |
| Software | PowerMaster |
| Environment |
| Noise Level | < 30dB |
| Fan Logic | No fan |
| Temperature | 0°C – 40°C |
| Humidity | 0% – 90% RH (non-condensing) |
| IP | IP 20 |
| Logistics |
| Package Content | Rack Ears, Input Power Cable, Manual, USB Cable, UPS |
| Manual Languages | EN, UA, DE, PL |
| EAN | 4260074980394 |
| Product Dimensions (DxWxH) [mm] | 216 x 433 x 44 mm |
| Product Weight [kg] | 8.6 |
| Package Dimensions (DxWxH) [mm] | 317 x 537 x 150 mm |
| Package Weight [kg] | 10.5 |
